176

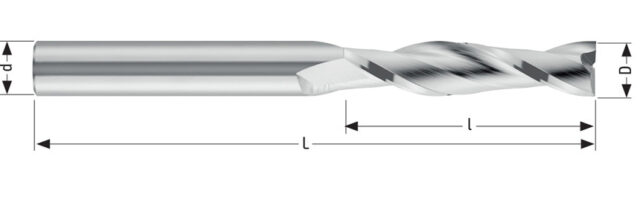

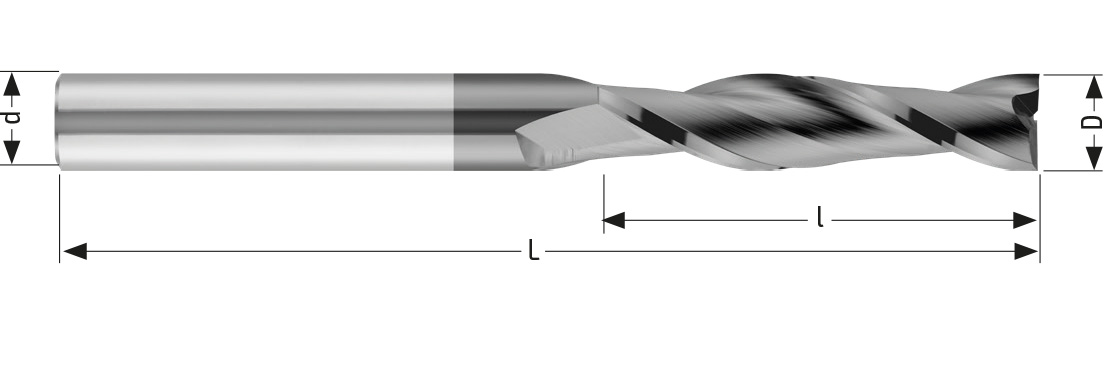

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D h10 | d h6 | L | l | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|
| 4,00 | 4,00 | 80 | 32,00 | 2 | HA | Alcrona | HMG176040 | ||
| 6,00 | 6,00 | 105 | 42,00 | 2 | HA | Alcrona | HMG176060 | ||
| 8,00 | 8,00 | 105 | 50,00 | 2 | HA | Alcrona | HMG176080 | ||
| 10,00 | 10,00 | 120 | 50,00 | 2 | HA | Alcrona | HMG176100 | ||
| 12,00 | 12,00 | 160 | 65,00 | 2 | HA | Alcrona | HMG176120 | ||
| 14,00 | 14,00 | 160 | 70,00 | 2 | HA | Alcrona | HMG176140 | ||
| 16,00 | 16,00 | 160 | 70,00 | 2 | HA | Alcrona | HMG176160 | ||
| 4,00 | 4,00 | 80 | 32,00 | 2 | HA | Futura | HMF176040 | ||
| 6,00 | 6,00 | 105 | 42,00 | 2 | HA | Futura | HMF176060 | ||
| 8,00 | 8,00 | 105 | 50,00 | 2 | HA | Futura | HMF176080 | ||
| 10,00 | 10,00 | 120 | 50,00 | 2 | HA | Futura | HMF176100 | ||
| 12,00 | 12,00 | 160 | 65,00 | 2 | HA | Futura | HMF176120 | ||
| 14,00 | 14,00 | 160 | 70,00 | 2 | HA | Futura | HMF176140 | ||
| 16,00 | 16,00 | 160 | 70,00 | 2 | HA | Futura | HMF176160 | ||
| 4,00 | 4,00 | 80 | 32,00 | 2 | HA | Uncoated | HM0176040 | ||
| 6,00 | 6,00 | 105 | 42,00 | 2 | HA | Uncoated | HM0176060 | ||
| 8,00 | 8,00 | 105 | 50,00 | 2 | HA | Uncoated | HM0176080 | ||
| 10,00 | 10,00 | 120 | 50,00 | 2 | HA | Uncoated | HM0176100 | ||
| 12,00 | 12,00 | 160 | 65,00 | 2 | HA | Uncoated | HM0176120 | ||
| 14,00 | 14,00 | 160 | 70,00 | 2 | HA | Uncoated | HM0176140 | ||
| 16,00 | 16,00 | 160 | 70,00 | 2 | HA | Uncoated | HM0176160 |
