HM UNV
Universal end mills

107

2 flute end mill, extra short version

Items: 39 | Diameters: 13 | Coatings: 3 | Front types: 1

Unv 107

Details

Coatings Coatings
Balinit® Alcrona (HMG)
Balinit® Futura (HMF)
Uncoated (HM0)
All PVD coatings are applied at Silmax plant with Oerlikon Balzers® machines. Read more
Machined Materials Machined Materials
Steel < 800 n/mm²
Steel < 1000 n/mm²
Steel < 1300 n/mm²
Cast iron

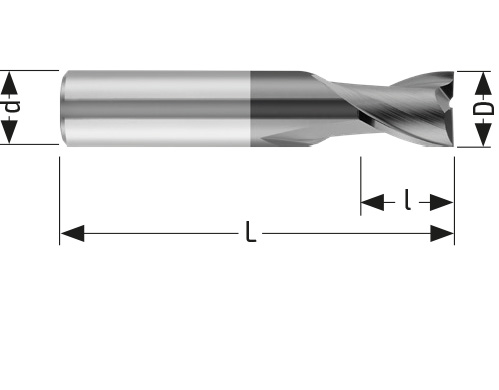

Unv 107 Dimensions
Series: short
Alternative Series 171 (normal))
Unv 171

Range 107

Tool face type
Shank reference
Diameter of Cutting Edge
Cutting length
Coating
Products
:
D h10 d h6 L l Z Shank ref. Coatings
(Balinit®)
Code Order
2,00 6,00 38 3,00 2 HA Alcrona (HMG) HMG107020
2,50 6,00 38 3,00 2 HA Alcrona (HMG) HMG107025
3,00 6,00 38 4,00 2 HA Alcrona (HMG) HMG107030
3,50 6,00 38 4,00 2 HA Alcrona (HMG) HMG107035
4,00 6,00 38 5,00 2 HA Alcrona (HMG) HMG107040
4,50 6,00 38 5,00 2 HA Alcrona (HMG) HMG107045
5,00 6,00 38 6,00 2 HA Alcrona (HMG) HMG107050
6,00 6,00 38 7,00 2 HA Alcrona (HMG) HMG107060
7,00 8,00 43 9,00 2 HA Alcrona (HMG) HMG107070
8,00 8,00 43 9,00 2 HA Alcrona (HMG) HMG107080
9,00 10,00 50 11,00 2 HA Alcrona (HMG) HMG107090
10,00 10,00 50 11,00 2 HA Alcrona (HMG) HMG107100
12,00 12,00 63 12,00 2 HA Alcrona (HMG) HMG107120
2,00 6,00 38 3,00 2 HA Futura (HMF) HMF107020
2,50 6,00 38 3,00 2 HA Futura (HMF) HMF107025
3,00 6,00 38 4,00 2 HA Futura (HMF) HMF107030
3,50 6,00 38 4,00 2 HA Futura (HMF) HMF107035
4,00 6,00 38 5,00 2 HA Futura (HMF) HMF107040
4,50 6,00 38 5,00 2 HA Futura (HMF) HMF107045
5,00 6,00 38 6,00 2 HA Futura (HMF) HMF107050
6,00 6,00 38 7,00 2 HA Futura (HMF) HMF107060
7,00 8,00 43 9,00 2 HA Futura (HMF) HMF107070
8,00 8,00 43 9,00 2 HA Futura (HMF) HMF107080
9,00 10,00 50 11,00 2 HA Futura (HMF) HMF107090
10,00 10,00 50 11,00 2 HA Futura (HMF) HMF107100
12,00 12,00 63 12,00 2 HA Futura (HMF) HMF107120
2,00 6,00 38 3,00 2 HA Uncoated (HM0) HM0107020
2,50 6,00 38 3,00 2 HA Uncoated (HM0) HM0107025
3,00 6,00 38 4,00 2 HA Uncoated (HM0) HM0107030
3,50 6,00 38 4,00 2 HA Uncoated (HM0) HM0107035
4,00 6,00 38 5,00 2 HA Uncoated (HM0) HM0107040
4,50 6,00 38 5,00 2 HA Uncoated (HM0) HM0107045
5,00 6,00 38 6,00 2 HA Uncoated (HM0) HM0107050
6,00 6,00 38 7,00 2 HA Uncoated (HM0) HM0107060
7,00 8,00 43 9,00 2 HA Uncoated (HM0) HM0107070
8,00 8,00 43 9,00 2 HA Uncoated (HM0) HM0107080
9,00 10,00 50 11,00 2 HA Uncoated (HM0) HM0107090
10,00 10,00 50 11,00 2 HA Uncoated (HM0) HM0107100
12,00 12,00 63 12,00 2 HA Uncoated (HM0) HM0107120
Request information

If you have any doubts, need a guide in choosing or simply want to have more information about this tool, please contact us.
