HM TIS
Titanium, super alloys and stainless steel end mills

118

4 flute end mill for the machining of superalloys

Items: 50 | Diameters: 8 | Coatings: 2 | Front types: 2

Tis 118

Details

Coatings Coatings
Balinit® Tisaflex (HMH)
Balinit® Latuma (HMC)
All PVD coatings are applied at Silmax plant with Oerlikon Balzers® machines. Read more
Machined Materials Machined Materials
Difficult-to-machine Superalloys
Very difficult-to-machine Superalloys

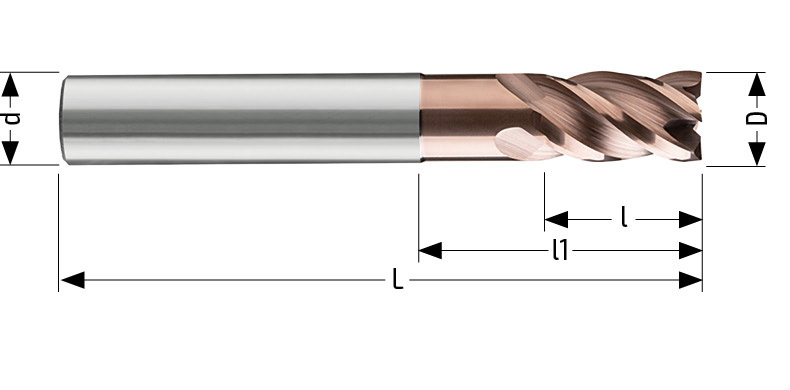

Tis 118 Dimensions
Series: normal

Range 118

Tool face type
Shank reference
Diameter of Cutting Edge
Cutting length
Coating
Products
:
D e8 d h6 L l l1 a Cr/r 45° Z Shank ref. Coatings
(Balinit®)
Code Order
4,00 6,00 57 7,00 0,05 4 HA Tisaflex (HMH) HMH118040
4,00 6,00 57 7,00 0,05 4 HB Tisaflex (HMH) HMH118040W
5,00 6,00 57 8,50 0,05 4 HA Tisaflex (HMH) HMH118050
5,00 6,00 57 8,50 0,05 4 HB Tisaflex (HMH) HMH118050W
6,00 6,00 57 9,00 18,0 0,15 0,05 4 HA Tisaflex (HMH) HMH118060
6,00 6,00 57 9,00 18,0 0,15 0,05 4 HB Tisaflex (HMH) HMH118060W
8,00 8,00 63 12,00 24,0 0,15 0,05 4 HA Tisaflex (HMH) HMH118080
8,00 8,00 63 12,00 24,0 0,15 0,05 4 HB Tisaflex (HMH) HMH118080W
10,00 10,00 72 15,00 30,0 0,15 0,05 4 HA Tisaflex (HMH) HMH118100
10,00 10,00 72 15,00 30,0 0,15 0,05 4 HB Tisaflex (HMH) HMH118100W
12,00 12,00 83 18,00 36,0 0,20 0,05 4 HA Tisaflex (HMH) HMH118120
12,00 12,00 83 18,00 36,0 0,20 0,05 4 HB Tisaflex (HMH) HMH118120W
16,00 16,00 92 24,00 42,0 0,20 0,05 4 HA Tisaflex (HMH) HMH118160
16,00 16,00 92 24,00 42,0 0,20 0,05 4 HB Tisaflex (HMH) HMH118160W
20,00 20,00 104 30,00 52,0 0,20 0,05 4 HA Tisaflex (HMH) HMH118200
20,00 20,00 104 30,00 52,0 0,20 0,05 4 HB Tisaflex (HMH) HMH118200W
4,00 6,00 57 6,00 0,05 4 HA Latuma (HMC) HMC118040
5,00 6,00 57 7,50 0,05 4 HA Latuma (HMC) HMC118050
6,00 6,00 57 9,00 18,0 0,15 0,05 4 HA Latuma (HMC) HMC118060
8,00 8,00 63 12,00 24,0 0,15 0,05 4 HA Latuma (HMC) HMC118080
10,00 10,00 72 15,00 30,0 0,15 0,05 4 HA Latuma (HMC) HMC118100
12,00 12,00 83 18,00 36,0 0,20 0,05 4 HA Latuma (HMC) HMC118120
16,00 16,00 92 24,00 42,0 0,20 0,05 4 HA Latuma (HMC) HMC118160
20,00 20,00 104 30,00 52,0 0,20 0,05 4 HA Latuma (HMC) HMC118200
6,00 6,00 57 9,00 18,0 0,15 0,50 4 HA Tisaflex (HMH) HMH118060CR05
6,00 6,00 57 9,00 18,0 0,15 0,50 4 HB Tisaflex (HMH) HMH118060CR05W
8,00 8,00 63 12,00 24,0 0,15 0,50 4 HA Tisaflex (HMH) HMH118080CR05
8,00 8,00 63 12,00 24,0 0,15 0,50 4 HB Tisaflex (HMH) HMH118080CR05W
8,00 8,00 63 12,00 24,0 0,15 0,80 4 HA Tisaflex (HMH) HMH118080CR08
10,00 10,00 72 15,00 30,0 0,15 0,30 4 HA Tisaflex (HMH) HMH118100CR03
10,00 10,00 72 15,00 30,0 0,15 0,30 4 HB Tisaflex (HMH) HMH118100CR03W
10,00 10,00 72 15,00 30,0 0,15 0,80 4 HA Tisaflex (HMH) HMH118100CR08
10,00 10,00 72 15,00 30,0 0,15 0,80 4 HB Tisaflex (HMH) HMH118100CR08W
10,00 10,00 72 15,00 30,0 0,15 1,00 4 HA Tisaflex (HMH) HMH118100CR10
10,00 10,00 72 15,00 30,0 0,15 1,00 4 HB Tisaflex (HMH) HMH118100CR10W
10,00 10,00 72 15,00 30,0 0,15 0,30 4 HA Tisaflex (HMH) HMH118100CR
12,00 12,00 83 18,00 36,0 0,20 1,00 4 HA Tisaflex (HMH) HMH118120CR10
12,00 12,00 83 18,00 36,0 0,20 1,00 4 HB Tisaflex (HMH) HMH118120CR10W
12,00 12,00 83 18,00 36,0 0,20 1,50 4 HA Tisaflex (HMH) HMH118120CR15
12,00 12,00 83 18,00 36,0 0,20 1,50 4 HB Tisaflex (HMH) HMH118120CR15W
16,00 16,00 92 24,00 42,0 0,20 1,00 4 HA Tisaflex (HMH) HMH118160CR10
16,00 16,00 92 24,00 42,0 0,20 1,00 4 HB Tisaflex (HMH) HMH118160CR10W
20,00 20,00 104 30,00 52,0 0,20 1,00 4 HA Tisaflex (HMH) HMH118200CR10
20,00 20,00 104 30,00 52,0 0,20 1,00 4 HB Tisaflex (HMH) HMH118200CR10W
6,00 6,00 57 9,00 18,0 0,15 0,50 4 HA Latuma (HMC) HMC118060CR05
8,00 8,00 63 12,00 24,0 0,15 0,50 4 HA Latuma (HMC) HMC118080CR05
10,00 10,00 72 15,00 30,0 0,15 1,00 4 HA Latuma (HMC) HMC118100CR10
12,00 12,00 83 18,00 36,0 0,20 1,00 4 HA Latuma (HMC) HMC118120CR10
16,00 16,00 92 24,00 42,0 0,20 1,00 4 HA Latuma (HMC) HMC118160CR10
20,00 20,00 104 30,00 52,0 0,20 1,00 4 HA Latuma (HMC) HMC118200CR10
