3124A
12xD double margin drill with internal coolant
3124A

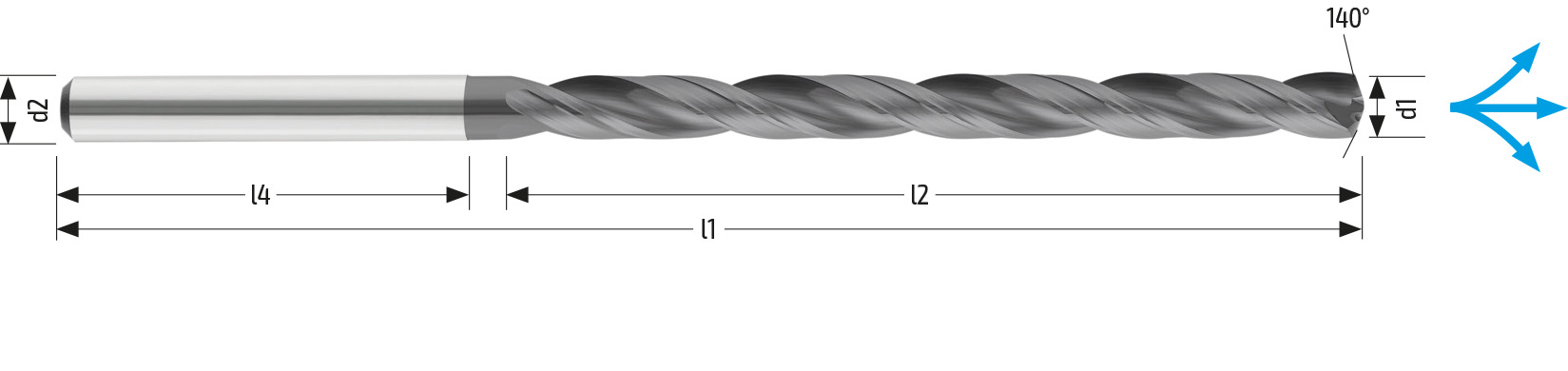

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| d1 k7 | d2 h6 | lu | l2 | l4 | l1 |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|
| 3,00 | 6,00 | 48,00 | 54,0 | 36,0 | 92 | Latuma | HMC3124A030 | ||
| 3,10 | 6,00 | 48,00 | 54,0 | 36,0 | 92 | Latuma | HMC3124A031 | ||
| 3,20 | 6,00 | 48,00 | 54,0 | 36,0 | 92 | Latuma | HMC3124A032 | ||
| 3,30 | 6,00 | 48,00 | 54,0 | 36,0 | 92 | Latuma | HMC3124A033 | ||
| 3,40 | 6,00 | 48,00 | 54,0 | 36,0 | 92 | Latuma | HMC3124A034 | ||
| 3,50 | 6,00 | 48,00 | 54,0 | 36,0 | 92 | Latuma | HMC3124A035 | ||
| 3,60 | 6,00 | 48,00 | 54,0 | 36,0 | 92 | Latuma | HMC3124A036 | ||
| 3,70 | 6,00 | 48,00 | 54,0 | 36,0 | 92 | Latuma | HMC3124A037 | ||
| 3,80 | 6,00 | 58,00 | 64,0 | 36,0 | 102 | Latuma | HMC3124A038 | ||
| 3,90 | 6,00 | 58,00 | 64,0 | 36,0 | 102 | Latuma | HMC3124A039 | ||
| 4,05 | 6,00 | 58,00 | 64,0 | 36,0 | 102 | Latuma | HMC3124A04A | ||
| 4,00 | 6,00 | 58,00 | 64,0 | 36,0 | 102 | Latuma | HMC3124A040 | ||
| 4,10 | 6,00 | 58,00 | 64,0 | 36,0 | 102 | Latuma | HMC3124A041 | ||
| 4,20 | 6,00 | 58,00 | 64,0 | 36,0 | 102 | Latuma | HMC3124A042 | ||
| 4,30 | 6,00 | 58,00 | 64,0 | 36,0 | 102 | Latuma | HMC3124A043 | ||
| 4,40 | 6,00 | 58,00 | 64,0 | 36,0 | 102 | Latuma | HMC3124A044 | ||
| 4,50 | 6,00 | 58,00 | 64,0 | 36,0 | 102 | Latuma | HMC3124A045 | ||
| 4,60 | 6,00 | 58,00 | 64,0 | 36,0 | 102 | Latuma | HMC3124A046 | ||
| 4,70 | 6,00 | 58,00 | 64,0 | 36,0 | 102 | Latuma | HMC3124A047 | ||
| 4,65 | 6,00 | 58,00 | 78,0 | 36,0 | 116 | Latuma | HMC3124A04B | ||
| 4,80 | 6,00 | 70,00 | 78,0 | 36,0 | 116 | Latuma | HMC3124A048 | ||
| 5,05 | 6,00 | 70,00 | 78,0 | 36,0 | 116 | Latuma | HMC3124A05A | ||
| 5,00 | 6,00 | 70,00 | 78,0 | 36,0 | 116 | Latuma | HMC3124A050 | ||
| 5,10 | 6,00 | 70,00 | 78,0 | 36,0 | 116 | Latuma | HMC3124A051 | ||
| 5,20 | 6,00 | 70,00 | 78,0 | 36,0 | 116 | Latuma | HMC3124A052 | ||
| 5,40 | 6,00 | 70,00 | 78,0 | 36,0 | 116 | Latuma | HMC3124A054 | ||
| 5,50 | 6,00 | 70,00 | 78,0 | 36,0 | 116 | Latuma | HMC3124A055 | ||
| 5,60 | 6,00 | 70,00 | 78,0 | 36,0 | 116 | Latuma | HMC3124A056 | ||
| 5,70 | 6,00 | 70,00 | 78,0 | 36,0 | 116 | Latuma | HMC3124A057 | ||
| 5,80 | 6,00 | 70,00 | 78,0 | 36,0 | 116 | Latuma | HMC3124A058 | ||
| 6,00 | 6,00 | 70,00 | 78,0 | 36,0 | 116 | Latuma | HMC3124A060 | ||
| 6,10 | 8,00 | 94,00 | 108,0 | 36,0 | 146 | Latuma | HMC3124A061 | ||
| 6,40 | 8,00 | 94,00 | 108,0 | 36,0 | 146 | Latuma | HMC3124A064 | ||
| 6,50 | 8,00 | 94,00 | 108,0 | 36,0 | 146 | Latuma | HMC3124A065 | ||
| 6,80 | 8,00 | 94,00 | 108,0 | 36,0 | 146 | Latuma | HMC3124A068 | ||
| 6,90 | 8,00 | 94,00 | 108,0 | 36,0 | 146 | Latuma | HMC3124A069 | ||
| 7,00 | 8,00 | 94,00 | 108,0 | 36,0 | 146 | Latuma | HMC3124A070 | ||
| 7,10 | 8,00 | 94,00 | 108,0 | 36,0 | 146 | Latuma | HMC3124A071 | ||
| 7,50 | 8,00 | 94,00 | 108,0 | 36,0 | 146 | Latuma | HMC3124A075 | ||
| 7,60 | 8,00 | 94,00 | 108,0 | 36,0 | 146 | Latuma | HMC3124A076 | ||
| 7,70 | 8,00 | 94,00 | 108,0 | 36,0 | 146 | Latuma | HMC3124A077 | ||
| 7,80 | 8,00 | 94,00 | 108,0 | 36,0 | 146 | Latuma | HMC3124A078 | ||
| 7,90 | 8,00 | 94,00 | 108,0 | 36,0 | 146 | Latuma | HMC3124A079 | ||
| 8,00 | 8,00 | 94,00 | 108,0 | 36,0 | 146 | Latuma | HMC3124A080 | ||
| 8,20 | 10,00 | 110,00 | 120,0 | 40,0 | 162 | Latuma | HMC3124A082 | ||
| 8,30 | 10,00 | 110,00 | 120,0 | 40,0 | 162 | Latuma | HMC3124A083 | ||
| 8,40 | 10,00 | 110,00 | 120,0 | 40,0 | 162 | Latuma | HMC3124A084 | ||
| 8,50 | 10,00 | 110,00 | 120,0 | 40,0 | 162 | Latuma | HMC3124A085 | ||
| 8,60 | 10,00 | 110,00 | 120,0 | 40,0 | 162 | Latuma | HMC3124A086 | ||
| 8,70 | 10,00 | 110,00 | 120,0 | 40,0 | 162 | Latuma | HMC3124A087 |
Brochure
Request information
If you have any doubts, need a guide in choosing or simply want to have more information about this tool, please contact us.
