185R
5 fl ute end mill with long helix and with chip braker 5xD
185R

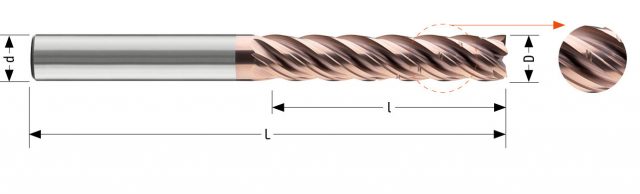

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D h10 | d h6 | L | l | Cr/r | 45° | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6,00 | 6,00 | 74 | 30,00 | — | 0,15 | 5 | HA | Tisaflex | HMH185R060 | ||
| 6,00 | 6,00 | 74 | 30,00 | — | 0,15 | 5 | HB | Tisaflex | HMH185R060W | ||
| 8,00 | 8,00 | 84 | 40,00 | — | 0,20 | 5 | HA | Tisaflex | HMH185R080 | ||
| 8,00 | 8,00 | 84 | 40,00 | — | 0,20 | 5 | HB | Tisaflex | HMH185R080W | ||
| 10,00 | 10,00 | 100 | 50,00 | — | 0,20 | 5 | HA | Tisaflex | HMH185R100 | ||
| 10,00 | 10,00 | 100 | 50,00 | — | 0,20 | 5 | HB | Tisaflex | HMH185R100W | ||
| 12,00 | 12,00 | 115 | 60,00 | — | 0,25 | 5 | HA | Tisaflex | HMH185R120 | ||
| 12,00 | 12,00 | 115 | 60,00 | — | 0,25 | 5 | HB | Tisaflex | HMH185R120W | ||
| 16,00 | 16,00 | 142 | 80,00 | — | 0,30 | 5 | HA | Tisaflex | HMH185R160 | ||
| 16,00 | 16,00 | 142 | 80,00 | — | 0,30 | 5 | HB | Tisaflex | HMH185R160W | ||
| 20,00 | 20,00 | 165 | 100,00 | — | 0,30 | 5 | HA | Tisaflex | HMH185R200 | ||
| 20,00 | 20,00 | 165 | 100,00 | — | 0,30 | 5 | HB | Tisaflex | HMH185R200W | ||
| 6,00 | 6,00 | 74 | 30,00 | 0,50 | — | 5 | HA | Tisaflex | HMH185R060CR05 | ||
| 6,00 | 6,00 | 74 | 30,00 | 0,50 | — | 5 | HB | Tisaflex | HMH185R060CR05W | ||
| 8,00 | 8,00 | 84 | 40,00 | 0,50 | — | 5 | HA | Tisaflex | HMH185R080CR05 | ||
| 8,00 | 8,00 | 84 | 40,00 | 0,50 | — | 5 | HB | Tisaflex | HMH185R080CR05W | ||
| 10,00 | 10,00 | 100 | 50,00 | 0,50 | — | 5 | HA | Tisaflex | HMH185R100CR05 | ||
| 10,00 | 10,00 | 100 | 50,00 | 0,50 | — | 5 | HB | Tisaflex | HMH185R100CR05W | ||
| 12,00 | 12,00 | 115 | 60,00 | 0,50 | — | 5 | HA | Tisaflex | HMH185R120CR05 | ||
| 12,00 | 12,00 | 115 | 60,00 | 0,50 | — | 5 | HB | Tisaflex | HMH185R120CR05W | ||
| 16,00 | 16,00 | 142 | 80,00 | 0,50 | — | 5 | HA | Tisaflex | HMH185R160CR05 | ||
| 16,00 | 16,00 | 142 | 80,00 | 0,50 | — | 5 | HB | Tisaflex | HMH185R160CR05W | ||
| 20,00 | 20,00 | 165 | 100,00 | 0,50 | — | 5 | HA | Tisaflex | HMH185R200CR05 | ||
| 20,00 | 20,00 | 165 | 100,00 | 0,50 | — | 5 | HB | Tisaflex | HMH185R200CR05W |
