3151N

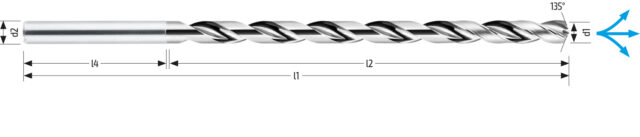

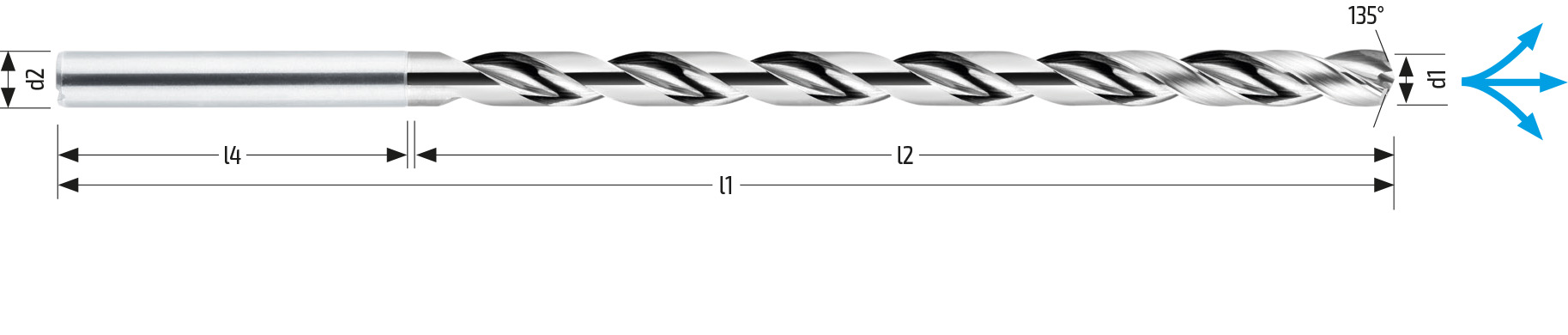

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| d1 h7 | d2 h6 | lu | l2 | l4 | l1 |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|
| 3,00 | 4,00 | 52,00 | 56,0 | 32,0 | 90 | Uncoated | HM03151N030 | ||
| 3,50 | 4,00 | 61,00 | 66,0 | 32,0 | 100 | Uncoated | HM03151N035 | ||
| 4,00 | 4,00 | 60,00 | 66,0 | 32,0 | 100 | Uncoated | HM03151N040 | ||
| 5,00 | 5,00 | 77,00 | 84,0 | 34,0 | 120 | Uncoated | HM03151N050 | ||
| 6,00 | 6,00 | 93,00 | 102,0 | 36,0 | 140 | Uncoated | HM03151N060 | ||
| 7,00 | 7,00 | 105,00 | 115,0 | 38,0 | 155 | Uncoated | HM03151N070 | ||
| 8,00 | 8,00 | 121,00 | 133,0 | 40,0 | 175 | Uncoated | HM03151N080 | ||
| 10,00 | 10,00 | 153,00 | 168,0 | 40,0 | 210 | Uncoated | HM03151N100 | ||
| 12,00 | 12,00 | 185,00 | 203,0 | 45,0 | 250 | Uncoated | HM03151N120 |
Brochure
Request information
If you have any doubts, need a guide in choosing or simply want to have more information about this tool, please contact us.
