5540
Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :

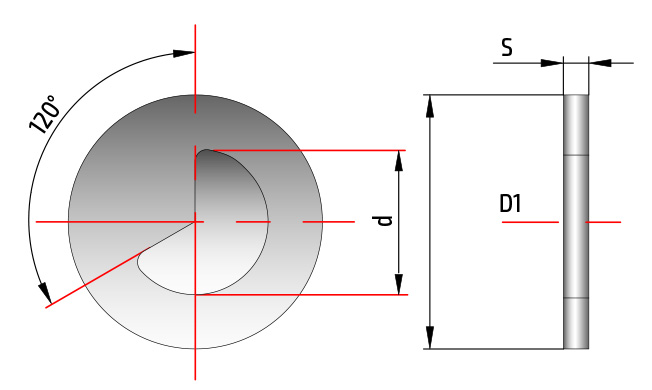

| dp | d | D1 | S | Code | Order | |
|---|---|---|---|---|---|---|
| 6,000-6,499 | 5,80 | 40,00 | 4,0 | PCA55400001 | ||
| 6,500-7,099 | 6,20 | 40,00 | 4,0 | PCA55400002 | ||
| 7,100-7,699 | 6,80 | 40,00 | 4,0 | PCA55400003 | ||
| 7,700-8,299 | 7,40 | 40,00 | 4,0 | PCA55400004 | ||
| 8,300-8,999 | 8,00 | 40,00 | 4,0 | PCA55400005 | ||
| 9,000-9,699 | 8,60 | 40,00 | 4,0 | PCA55400006 | ||
| 9,700-10,299 | 9,30 | 40,00 | 4,0 | PCA55400007 | ||
| 10,300-10,99 | 9,90 | 40,00 | 4,0 | PCA55400008 | ||
| 11,000-11,699 | 10,60 | 40,00 | 4,0 | PCA55400009 | ||
| 11,700-12,49 | 11,30 | 40,00 | 4,0 | PCA55400010 | ||
| 12,500-13,49 | 12,00 | 40,00 | 4,0 | PCA55400011 | ||
| 13,500-14,49 | 13,00 | 40,00 | 4,0 | PCA55400012 | ||
| 14,500-15,59 | 14,00 | 40,00 | 4,0 | PCA55400013 | ||
| 15,600-17,19 | 15,00 | 40,00 | 4,0 | PCA55400014 | ||
| 17,200-18,79 | 16,60 | 40,00 | 4,0 | PCA55400015 | ||
| 18,800-19,79 | 18,20 | 40,00 | 4,0 | PCA55400016 | ||
| 19,800-20,79 | 19,00 | 40,00 | 4,0 | PCA55400017 | ||
| 20,800-21,79 | 20,00 | 40,00 | 4,0 | PCA55400018 | ||
| 21,800-22,79 | 21,00 | 40,00 | 4,0 | PCA55400019 | ||
| 22,800-23,79 | 22,00 | 40,00 | 4,0 | PCA55400020 | ||
| 23,800-24,79 | 23,00 | 40,00 | 4,0 | PCA55400021 | ||
| 24,800-25,99 | 24,00 | 40,00 | 4,0 | PCA55400022 | ||
| 26,000-26,999 | 25,00 | 40,00 | 4,0 | PCA55400023 | ||
| 27,000-27,999 | 26,00 | 40,00 | 4,0 | PCA55400024 | ||
| 28,000-28,999 | 27,00 | 40,00 | 4,0 | PCA55400025 | ||
| 29,000-29,999 | 28,00 | 40,00 | 4,0 | PCA55400026 | ||
| 30,000-31,999 | 30,00 | 40,00 | 4,0 | PCA55400027 | ||
| 32,000-32,999 | 31,00 | 40,00 | 4,0 | PCA55400028 |
