177
2 flute end mill, long version
Items: 12 | Diameters: 6 | Coatings: 2 | Front types: 1
HMA
HM0
Details
Coatings
AluSpeed® (HMA)
Uncoated (HM0)
All PVD coatings are applied at Silmax plant with Oerlikon Balzers® machines.
Read more
Machined Materials
Aluminium
Copper
Thermoplastic resin
Range 177
Tool face type
Shank reference
Diameter of Cutting Edge
Cutting length
Coating
Products

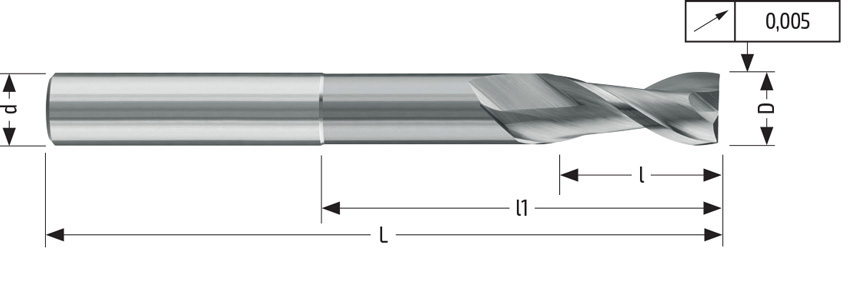

:| D h6 | d h6 | L | l | l1 | a | Z | Shank ref. | Coatings | Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6,00 | 6,00 | 75 | 13,00 | 32,0 | 0,15 | 2 | HA | AluSpeed® (HMA) | HMA177060 | ||
| 8,00 | 8,00 | 78 | 19,00 | 42,0 | 0,15 | 2 | HA | AluSpeed® (HMA) | HMA177080 | ||
| 10,00 | 10,00 | 104 | 22,00 | 55,0 | 0,15 | 2 | HA | AluSpeed® (HMA) | HMA177100 | ||
| 12,00 | 12,00 | 110 | 26,00 | 64,0 | 0,20 | 2 | HA | AluSpeed® (HMA) | HMA177120 | ||
| 16,00 | 16,00 | 130 | 32,00 | 75,0 | 0,20 | 2 | HA | AluSpeed® (HMA) | HMA177160 | ||
| 20,00 | 20,00 | 150 | 38,00 | 90,0 | 0,20 | 2 | HA | AluSpeed® (HMA) | HMA177200 | ||
| 6,00 | 6,00 | 75 | 13,00 | 32,0 | 0,15 | 2 | HA | Uncoated (HM0) | HM0177060 | ||
| 8,00 | 8,00 | 78 | 19,00 | 42,0 | 0,15 | 2 | HA | Uncoated (HM0) | HM0177080 | ||
| 10,00 | 10,00 | 104 | 22,00 | 55,0 | 0,15 | 2 | HA | Uncoated (HM0) | HM0177100 | ||
| 12,00 | 12,00 | 100 | 26,00 | 64,0 | 0,20 | 2 | HA | Uncoated (HM0) | HM0177120 | ||
| 16,00 | 16,00 | 130 | 32,00 | 75,0 | 0,20 | 2 | HA | Uncoated (HM0) | HM0177160 | ||
| 20,00 | 20,00 | 150 | 38,00 | 90,0 | 0,20 | 2 | HA | Uncoated (HM0) | HM0177200 |
Request information
If you have any doubts, need a guide in choosing or simply want to have more information about this tool, please contact us.
