321
Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :

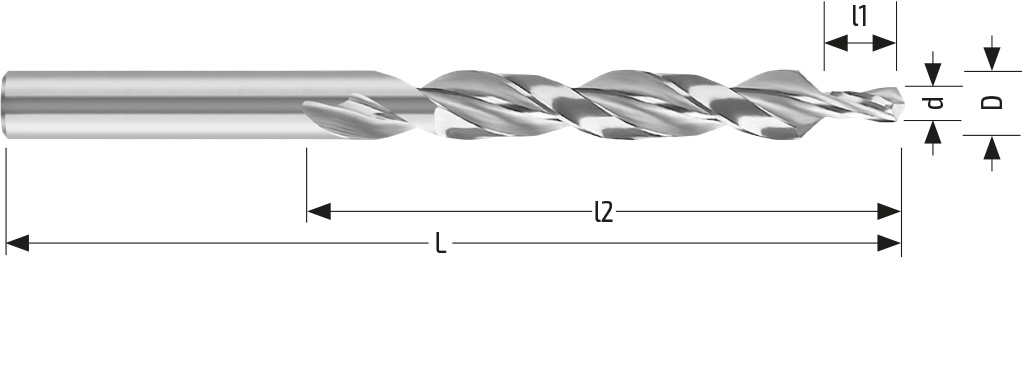

| dv | D h8 | d | L2 | L | α | d1 | l1 | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M3 | 3,40 | 3,40 | 39,0 | 70 | 90 | 2,5 | 9,0 | 2 | FORMA | Uncoated | UTP321003 | ||
| M4 | 4,50 | 4,50 | 47,0 | 80 | 90 | 3,3 | 11,0 | 2 | FORMA | Uncoated | UTP321004 | ||
| M5 | 5,50 | 5,50 | 57,0 | 93 | 90 | 4,2 | 14,0 | 2 | FORMA | Uncoated | UTP321005 | ||
| M6 | 6,60 | 6,60 | 63,0 | 101 | 90 | 5,0 | 16,0 | 2 | FORMA | Uncoated | UTP321006 | ||
| M8 | 9,00 | 9,00 | 81,0 | 125 | 90 | 6,8 | 21,0 | 2 | FORMA | Uncoated | UTP321008 | ||
| M10 | 11,00 | 11,00 | 81,0 | 162 | 90 | 8,5 | 25,0 | 2 | FORMA | Uncoated | UTP321010 | ||
| M12 | 14,00 | 13,50 | 94,0 | 142 | 90 | 10,2 | 30,0 | 2 | FORMA | Uncoated | UTP321012 |
