405

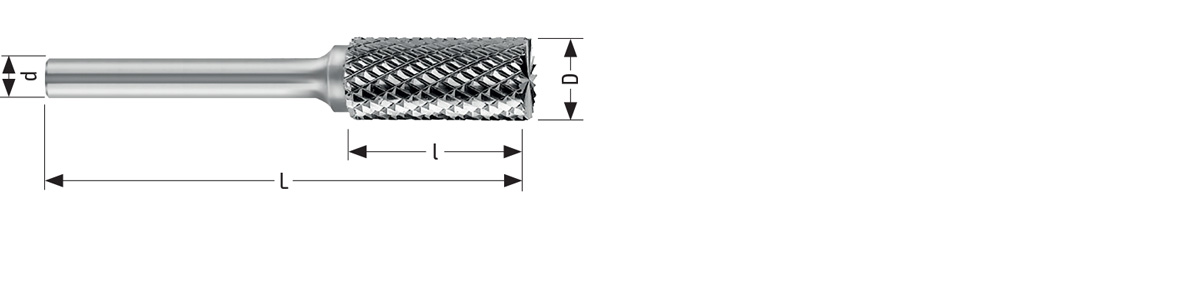

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| C | D +/-0,1 | d h7 | L | l | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|
| Double (0) | 6,00 | 6,00 | 50 | 16,00 | HA | Alcrona | HMG4056060 | ||
| Double (0) | 8,00 | 6,00 | 65 | 18,00 | HA | Alcrona | HMG4056080 | ||
| Double (0) | 10,00 | 6,00 | 65 | 20,00 | HA | Alcrona | HMG4056100 | ||
| Double (0) | 12,00 | 6,00 | 70 | 25,00 | HA | Alcrona | HMG4056120 | ||
| Double (0) | 16,00 | 8,00 | 70 | 25,00 | HA | Alcrona | HMG4058160 | ||
| Double (0) | 6,00 | 6,00 | 50 | 18,00 | HA | Uncoated | HM04056060 | ||
| Double (0) | 8,00 | 6,00 | 65 | 18,00 | HA | Uncoated | HM04056080 | ||
| Double (0) | 10,00 | 6,00 | 65 | 20,00 | HA | Uncoated | HM04056100 | ||
| Double (0) | 12,00 | 6,00 | 70 | 25,00 | HA | Uncoated | HM04056120 | ||
| Double (0) | 16,00 | 8,00 | 70 | 25,00 | HA | Uncoated | HM04058160 | ||
| Alu (A) | 6,00 | 6,00 | 50 | 16,00 | HA | Alcrona | HMG405606A | ||
| Alu (A) | 8,00 | 6,00 | 65 | 18,00 | HA | Alcrona | HMG405608A | ||
| Alu (A) | 10,00 | 6,00 | 65 | 20,00 | HA | Alcrona | HMG405610A | ||
| Alu (A) | 12,00 | 6,00 | 70 | 25,00 | HA | Alcrona | HMG405612A | ||
| Alu (A) | 16,00 | 8,00 | 70 | 25,00 | HA | Alcrona | HMG405816A | ||
| Alu (A) | 6,00 | 6,00 | 50 | 16,00 | HA | Uncoated | HM0405606A | ||
| Alu (A) | 8,00 | 6,00 | 65 | 18,00 | HA | Uncoated | HM0405608A | ||
| Alu (A) | 10,00 | 6,00 | 65 | 20,00 | HA | Uncoated | HM0405610A | ||
| Alu (A) | 12,00 | 6,00 | 70 | 25,00 | HA | Uncoated | HM0405612A | ||
| Alu (A) | 16,00 | 8,00 | 70 | 25,00 | HA | Uncoated | HM0405816A | ||
| Diamond (D) | 6,00 | 6,00 | 50 | 16,00 | HA | Alcrona | HMG405606D | ||
| Diamond (D) | 6,00 | 6,00 | 50 | 16,00 | HA | Alcrona | HMG405612D | ||
| Diamond (D) | 8,00 | 6,00 | 65 | 18,00 | HA | Alcrona | HMG405608D | ||
| Diamond (D) | 10,00 | 6,00 | 65 | 20,00 | HA | Alcrona | HMG405610D | ||
| Diamond (D) | 16,00 | 8,00 | 70 | 25,00 | HA | Alcrona | HMG405816D | ||
| Diamond (D) | 6,00 | 6,00 | 50 | 16,00 | HA | Uncoated | HM0405606D | ||
| Diamond (D) | 8,00 | 6,00 | 65 | 18,00 | HA | Uncoated | HM0405608D | ||
| Diamond (D) | 10,00 | 6,00 | 65 | 20,00 | HA | Uncoated | HM0405610D | ||
| Diamond (D) | 12,00 | 6,00 | 70 | 25,00 | HA | Uncoated | HM0405612D | ||
| Diamond (D) | 16,00 | 8,00 | 70 | 25,00 | HA | Uncoated | HM0405816D | ||
| Single (S) | 6,00 | 6,00 | 50 | 16,00 | HA | Alcrona | HMG405606S | ||
| Single (S) | 8,00 | 6,00 | 65 | 18,00 | HA | Alcrona | HMG405608S | ||
| Single (S) | 10,00 | 6,00 | 65 | 20,00 | HA | Alcrona | HMG405610S | ||
| Single (S) | 12,00 | 6,00 | 70 | 25,00 | HA | Alcrona | HMG405612S | ||
| Single (S) | 16,00 | 8,00 | 70 | 25,00 | HA | Alcrona | HMG405816S | ||
| Single (S) | 6,00 | 6,00 | 50 | 16,00 | HA | Uncoated | HM0405606S | ||
| Single (S) | 8,00 | 6,00 | 65 | 18,00 | HA | Uncoated | HM0405608S | ||
| Single (S) | 10,00 | 6,00 | 65 | 20,00 | HA | Uncoated | HM0405610S | ||
| Single (S) | 12,00 | 6,00 | 70 | 25,00 | HA | Uncoated | HM0405612S | ||
| Single (S) | 16,00 | 8,00 | 70 | 25,00 | HA | Uncoated | HM0405816S |
