152
Finishing end mill regular version
SIL
NIG
152

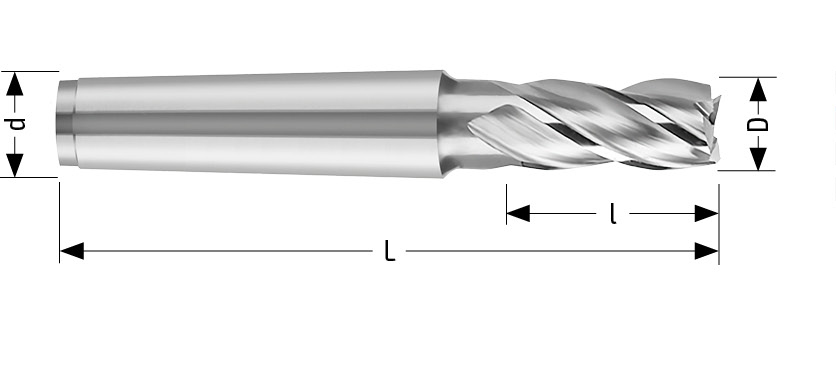

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D k10 | d | L | l | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|
| 16,00 | 17,78 | 117 | 32,00 | 4 | FORMC | Uncoated | SIL152016 | ||
| 18,00 | 17,78 | 117 | 32,00 | 4 | FORMC | Uncoated | SIL152018 | ||
| 20,00 | 17,78 | 123 | 38,00 | 4 | FORMC | Uncoated | SIL152020 | ||
| 22,00 | 23,83 | 140 | 38,00 | 4 | FORMC | Uncoated | SIL152022 | ||
| 25,00 | 23,83 | 147 | 45,00 | 4 | FORMC | Uncoated | SIL152025 | ||
| 28,00 | 23,83 | 147 | 45,00 | 6 | FORMC | Uncoated | SIL152028 | ||
| 30,00 | 23,83 | 147 | 45,00 | 6 | FORMC | Uncoated | SIL152030 | ||
| 32,00 | 23,83 | 155 | 53,00 | 6 | FORMC | Uncoated | SIL152032 | ||
| 36,00 | 31,27 | 178 | 53,00 | 6 | FORMC | Uncoated | SIL152036 | ||
| 40,00 | 31,27 | 188 | 63,00 | 6 | FORMC | Uncoated | SIL152040 | ||
| 45,00 | 31,27 | 188 | 63,00 | 6 | FORMC | Uncoated | SIL152045 | ||
| 16,00 | 17,78 | 117 | 32,00 | 4 | FORMC | Alcrona | NIG152016 | ||
| 18,00 | 17,78 | 117 | 32,00 | 4 | FORMC | Alcrona | NIG152018 | ||
| 20,00 | 17,78 | 123 | 38,00 | 4 | FORMC | Alcrona | NIG152020 | ||
| 22,00 | 23,83 | 140 | 38,00 | 4 | FORMC | Alcrona | NIG152022 | ||
| 25,00 | 23,83 | 147 | 45,00 | 4 | FORMC | Alcrona | NIG152025 | ||
| 28,00 | 23,83 | 147 | 45,00 | 6 | FORMC | Alcrona | NIG152028 | ||
| 30,00 | 23,83 | 147 | 45,00 | 6 | FORMC | Alcrona | NIG152030 | ||
| 32,00 | 23,83 | 155 | 53,00 | 6 | FORMC | Alcrona | NIG152032 | ||
| 36,00 | 31,27 | 178 | 53,00 | 6 | FORMC | Alcrona | NIG152036 | ||
| 40,00 | 31,27 | 188 | 63,00 | 6 | FORMC | Alcrona | NIG152040 | ||
| 45,00 | 31,27 | 188 | 63,00 | 6 | FORMC | Alcrona | NIG152045 |
