121
Finishing end mill, medium version
SIL
NIG
121

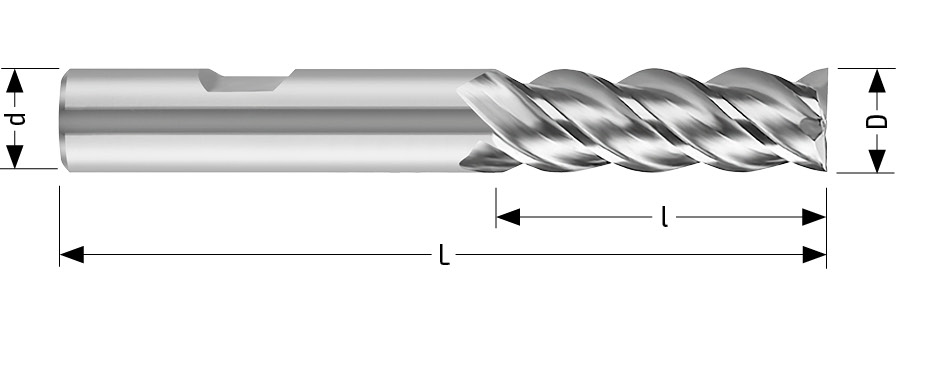

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D k10 | d | L | l | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|
| 6,00 | 6,00 | 62 | 18,00 | 4 | FORMB | Uncoated | SIL121006 | ||
| 8,00 | 10,00 | 75 | 25,00 | 4 | FORMB | Uncoated | SIL121008 | ||
| 10,00 | 10,00 | 83 | 33,00 | 4 | FORMB | Uncoated | SIL121010 | ||
| 12,00 | 12,00 | 96 | 39,00 | 4 | FORMB | Uncoated | SIL121012 | ||
| 14,00 | 12,00 | 96 | 39,00 | 4 | FORMB | Uncoated | SIL121014 | ||
| 16,00 | 16,00 | 105 | 45,00 | 4 | FORMB | Uncoated | SIL121016 | ||
| 18,00 | 16,00 | 105 | 45,00 | 4 | FORMB | Uncoated | SIL121018 | ||
| 20,00 | 20,00 | 121 | 55,00 | 6 | FORMB | Uncoated | SIL121020 | ||
| 25,00 | 25,00 | 141 | 65,00 | 6 | FORMB | Uncoated | SIL121025 | ||
| 6,00 | 6,00 | 62 | 18,00 | 4 | FORMB | Alcrona | NIG121006 | ||
| 8,00 | 10,00 | 75 | 25,00 | 4 | FORMB | Alcrona | NIG121008 | ||
| 10,00 | 10,00 | 83 | 33,00 | 4 | FORMB | Alcrona | NIG121010 | ||
| 12,00 | 12,00 | 96 | 39,00 | 4 | FORMB | Alcrona | NIG121012 | ||
| 14,00 | 12,00 | 96 | 39,00 | 4 | FORMB | Alcrona | NIG121014 | ||
| 16,00 | 16,00 | 105 | 45,00 | 4 | FORMB | Alcrona | NIG121016 | ||
| 18,00 | 16,00 | 105 | 45,00 | 4 | FORMB | Alcrona | NIG121018 | ||
| 20,00 | 20,00 | 121 | 55,00 | 6 | FORMB | Alcrona | NIG121020 | ||
| 25,00 | 25,00 | 141 | 65,00 | 6 | FORMB | Alcrona | NIG121025 |
