752
Multi-flute end mill with drilling end
HMD
HM0
752

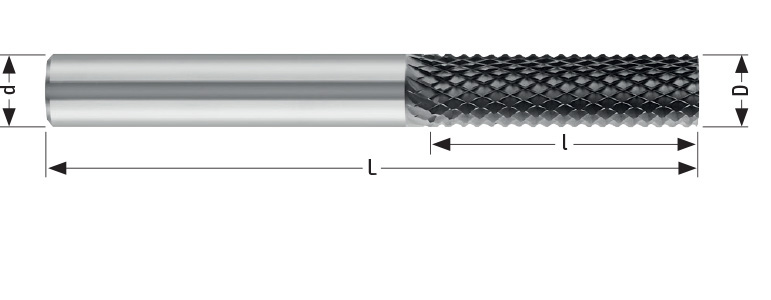

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D h10 | d h6 | L | l | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|
| 3,00 | 3,00 | 50 | 9,00 | 8 | HA | Diamond | HMD752030 | ||
| 4,00 | 4,00 | 50 | 12,00 | 9 | HA | Diamond | HMD752040 | ||
| 5,00 | 5,00 | 50 | 15,00 | 11 | HA | Diamond | HMD752050 | ||
| 6,00 | 6,00 | 64 | 18,00 | 11 | HA | Diamond | HMD752060 | ||
| 6,35 | 6,35 | 64 | 19,00 | 11 | HA | Diamond | HMD752063 | ||
| 8,00 | 8,00 | 75 | 24,00 | 13 | HA | Diamond | HMD752080 | ||
| 9,53 | 9,53 | 89 | 29,00 | 15 | HA | Diamond | HMD752095 | ||
| 10,00 | 10,00 | 85 | 30,00 | 15 | HA | Diamond | HMD752100 | ||
| 12,00 | 12,00 | 104 | 36,00 | 17 | HA | Diamond | HMD752120 | ||
| 12,70 | 12,70 | 104 | 38,00 | 17 | HA | Diamond | HMD752127 | ||
| 3,00 | 3,00 | 50 | 9,00 | 8 | HA | Uncoated | HM0752030 | ||
| 4,00 | 4,00 | 50 | 12,00 | 9 | HA | Uncoated | HM0752040 | ||
| 5,00 | 5,00 | 50 | 15,00 | 11 | HA | Uncoated | HM0752050 | ||
| 6,00 | 6,00 | 64 | 18,00 | 11 | HA | Uncoated | HM0752060 | ||
| 6,35 | 6,35 | 64 | 19,00 | 11 | HA | Uncoated | HM0752063 | ||
| 8,00 | 8,00 | 75 | 24,00 | 13 | HA | Uncoated | HM0752080 | ||
| 9,53 | 9,53 | 89 | 29,00 | 15 | HA | Uncoated | HM0752095 | ||
| 10,00 | 10,00 | 85 | 30,00 | 15 | HA | Uncoated | HM0752100 | ||
| 12,00 | 12,00 | 104 | 36,00 | 17 | HA | Uncoated | HM0752120 | ||
| 12,70 | 12,70 | 104 | 38,00 | 17 | HA | Uncoated | HM0752127 |
