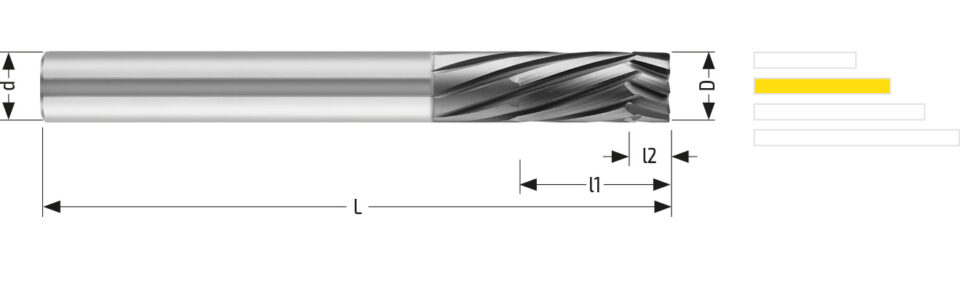

Details
D
Diameter of cutting edge
8,00 h10
d
Shank Diameter
8,00 h6
L
Overall Length
78
l
Cutting length
20,00
l1 ap1
Helix 1 Length
20,0
l2 ap2
Helix 2 Length
4,0
Cr/r
Corner Radius/Radius
0,50
Z
Number of Flutes
6
Shank ref.
Shank references standard
HA
Coating
Diamond
Working Parameters
The request did not produce any results. Click on the "Request information" button to send an enquiry, we will reply as soon as possible.
Brochure
Request information
If you have any doubts, need a guide in choosing or simply want to have more information about this tool, please contact us.
Export PDF
Please consider the environment, before printing this document.
Not the diameter you are looking for?
This tool is available in 7 diameters. Go to the Range
