HM UNV
Universal end mills

113

4 flute end mill regular version

Items: 50 | Diameters: 12 | Coatings: 3 | Front types: 1

Unv 113

Details

Coatings Coatings
Balinit® Alcrona (HMG)
Balinit® Futura (HMF)
Uncoated (HM0)
All PVD coatings are applied at Silmax plant with Oerlikon Balzers® machines. Read more
Machined Materials Machined Materials
Steel < 800 n/mm²
Steel < 1000 n/mm²
Steel < 1300 n/mm²
Cast iron

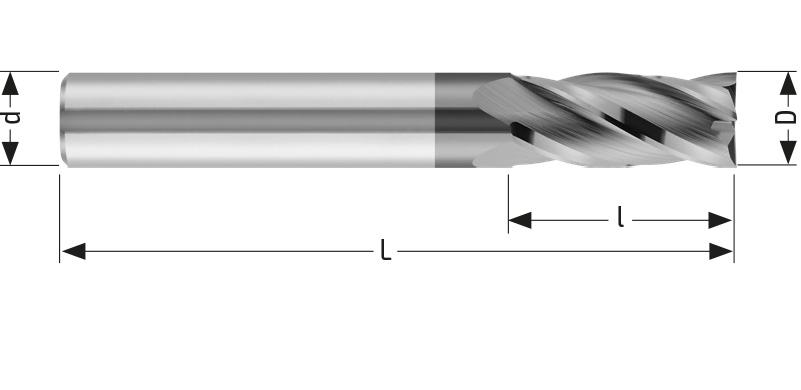

Unv 113 Dimensions
Series: normal
Alternative Series 123 (medium))
Unv 123

Range 113

Tool face type
Shank reference
Diameter of Cutting Edge
Cutting length
Coating
Products
:
D h10 d h6 L l Cr/r Z Shank ref. Coatings
(Balinit®)
Code Order
3,00 3,00 38 8,00 0,30 4 HA Alcrona (HMG) HMG113030CR03
4,00 4,00 50 11,00 0,30 4 HA Alcrona (HMG) HMG113040CR03
4,00 4,00 50 11,00 0,50 4 HA Alcrona (HMG) HMG113040CR05
5,00 5,00 50 13,00 0,50 4 HA Alcrona (HMG) HMG113050CR05
6,00 6,00 57 13,00 0,50 4 HA Alcrona (HMG) HMG113060CR05
6,00 6,00 57 13,00 0,80 4 HA Alcrona (HMG) HMG113060CR08
6,00 6,00 57 13,00 1,00 4 HA Alcrona (HMG) HMG113060CR10
8,00 8,00 63 19,00 0,50 4 HA Alcrona (HMG) HMG113080CR05
8,00 8,00 63 19,00 0,80 4 HA Alcrona (HMG) HMG113080CR08
10,00 10,00 72 22,00 0,50 4 HA Alcrona (HMG) HMG113100CR05
10,00 10,00 72 22,00 1,00 4 HA Alcrona (HMG) HMG113100CR10
12,00 12,00 83 26,00 1,00 4 HA Alcrona (HMG) HMG113120CR10
12,00 12,00 83 26,00 1,50 4 HA Alcrona (HMG) HMG113120CR15
14,00 14,00 83 26,00 1,50 4 HA Alcrona (HMG) HMG113140CR15
16,00 16,00 92 32,00 1,50 4 HA Alcrona (HMG) HMG113160CR15
18,00 18,00 92 32,00 1,50 4 HA Alcrona (HMG) HMG113180CR15
20,00 20,00 104 38,00 2,00 4 HA Alcrona (HMG) HMG113200CR20
25,00 25,00 121 45,00 2,00 4 HA Alcrona (HMG) HMG113250CR20
3,00 3,00 38 8,00 0,30 4 HA Futura (HMF) HMF113030CR03
4,00 4,00 50 11,00 0,30 4 HA Futura (HMF) HMF113040CR03
4,00 4,00 50 11,00 0,50 4 HA Futura (HMF) HMF113040CR05
5,00 5,00 50 13,00 0,50 4 HA Futura (HMF) HMF113050CR05
6,00 6,00 57 13,00 0,50 4 HA Futura (HMF) HMF113060CR05
6,00 6,00 57 13,00 0,80 4 HA Futura (HMF) HMF113060CR08
6,00 6,00 57 13,00 1,00 4 HA Futura (HMF) HMF113060CR10
8,00 8,00 63 19,00 0,50 4 HA Futura (HMF) HMF113080CR05
8,00 8,00 63 19,00 0,80 4 HA Futura (HMF) HMF113080CR08
10,00 10,00 72 22,00 0,50 4 HA Futura (HMF) HMF113100CR05
10,00 10,00 72 22,00 1,00 4 HA Futura (HMF) HMF113100CR10
12,00 12,00 83 26,00 1,00 4 HA Futura (HMF) HMF113120CR10
12,00 12,00 83 26,00 1,50 4 HA Futura (HMF) HMF113120CR15
14,00 14,00 83 26,00 1,50 4 HA Futura (HMF) HMF113140CR15
16,00 16,00 92 32,00 1,50 4 HA Futura (HMF) HMF113160CR15
18,00 18,00 92 32,00 1,50 4 HA Futura (HMF) HMF113180CR15
20,00 20,00 104 38,00 2,00 4 HA Futura (HMF) HMF113200CR20
25,00 25,00 121 45,00 2,00 4 HA Futura (HMF) HMF113250CR20
3,00 3,00 38 8,00 0,30 4 HA Uncoated (HM0) HM0113030CR03
4,00 4,00 50 11,00 0,30 4 HA Uncoated (HM0) HM0113040CR03
4,00 4,00 50 11,00 0,50 4 HA Uncoated (HM0) HM0113040CR05
5,00 5,00 50 13,00 0,50 4 HA Uncoated (HM0) HM0113050CR05
6,00 6,00 57 13,00 0,50 4 HA Uncoated (HM0) HM0113060CR05
6,00 6,00 57 13,00 0,80 4 HA Uncoated (HM0) HM0113060CR08
6,00 6,00 57 13,00 1,00 4 HA Uncoated (HM0) HM0113060CR10
8,00 8,00 63 19,00 0,50 4 HA Uncoated (HM0) HM0113080CR05
8,00 8,00 63 19,00 0,80 4 HA Uncoated (HM0) HM0113080CR08
10,00 10,00 72 22,00 0,50 4 HA Uncoated (HM0) HM0113100CR05
10,00 10,00 72 22,00 1,00 4 HA Uncoated (HM0) HM0113100CR10
12,00 12,00 83 26,00 1,00 4 HA Uncoated (HM0) HM0113120CR10
12,00 12,00 83 26,00 1,50 4 HA Uncoated (HM0) HM0113120CR15
14,00 14,00 83 26,00 1,50 4 HA Uncoated (HM0) HM0113140CR15
