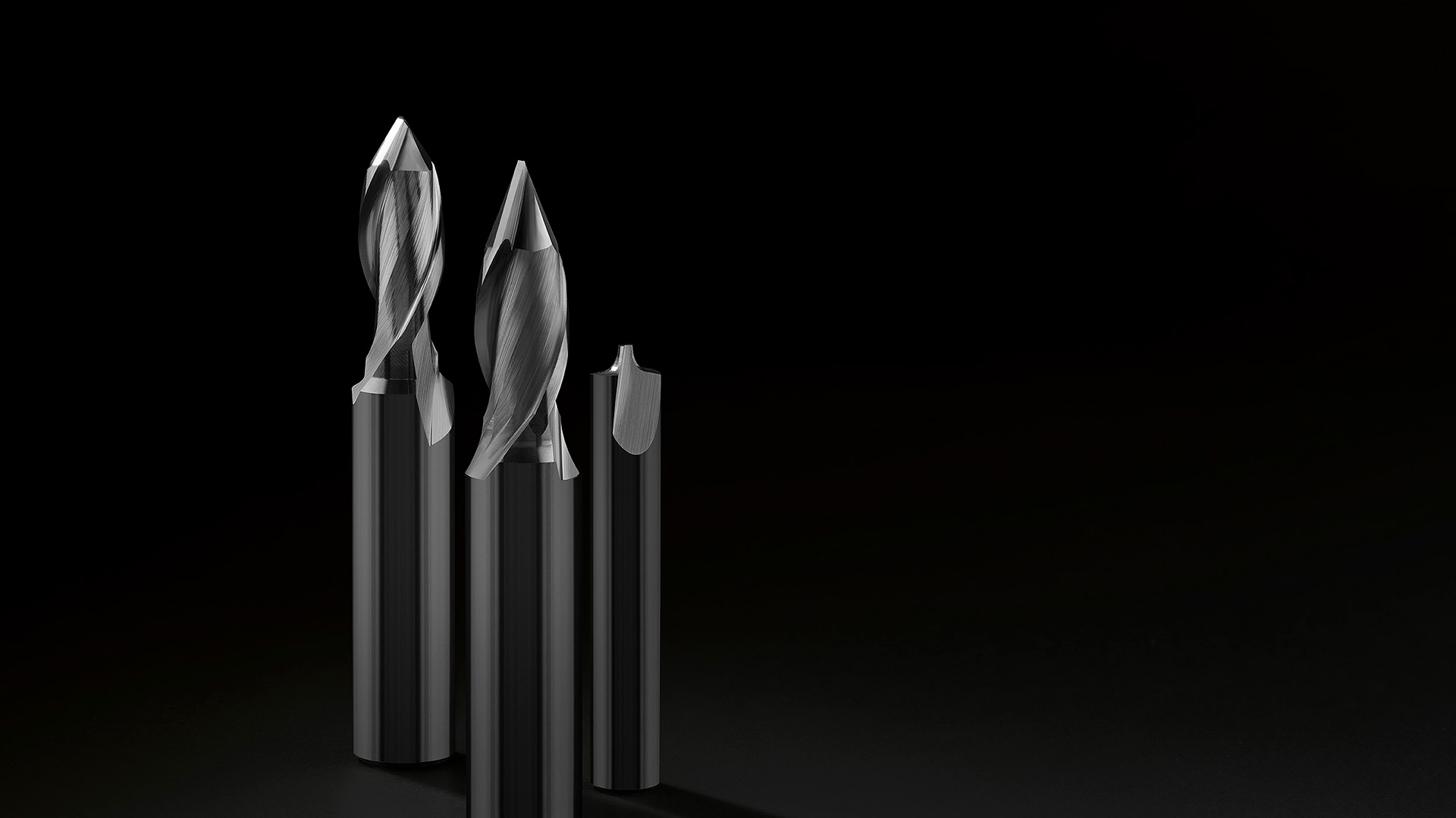

ALH

Other end mills

Tools

Diameter of cutting edge

Corner radius

Cutting length

Neck relief length

Overall length

90° chamfer end mill

60° chamfer end mill

3-flute end mill for undercut machining

60° double-angle end mill

90° double-angle end mill

VPlus endmill 60°

VPlus endmill 90°

Quarter circle cutter

Double-radius end mill

Item	D	Cr/r	l	l1	L
330 HMG330060 VPlus endmill 90°	6,00	—	12,00	—	60
0365 F03650G00800002 60° chamfer end mill	2,00	—	5,20	—	63
7740 F77400G00556001 3-flute end mill for undercut machining	5,56	2,78	5,19	—	70
320 HMG320080 VPlus endmill 60°	8,00	—	16,00	—	70
7740 F77400G00580001 3-flute end mill for undercut machining	5,80	2,90	5,41	—	70
0365 F03650G00300001 60° chamfer end mill	0,75	—	1,95	—	50
0364 F03640G00600002 90° chamfer end mill	1,50	—	2,25	—	57
0365 F03650G01600001 60° chamfer end mill	4,00	—	10,40	—	92
10G HMG10G101 Quarter circle cutter	1,50	1,00	11,00	—	50
0365 F03650G01200002 60° chamfer end mill	3,00	—	7,80	—	83
0366 F03660H00400001 90° double-angle end mill	4,00	—	1,75	—	100
0364 F03640G01000002 90° chamfer end mill	2,50	—	3,75	—	72
