330
Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :

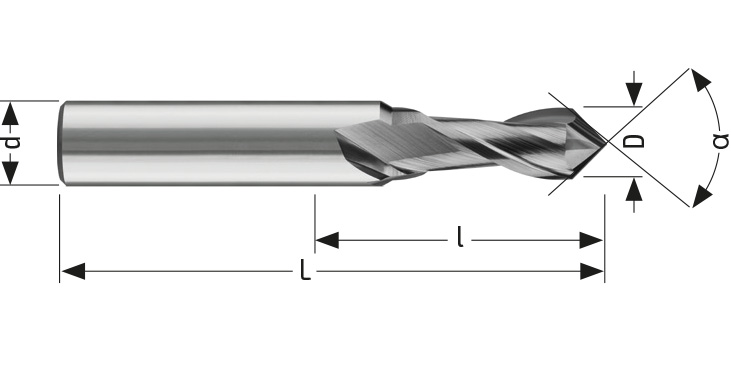

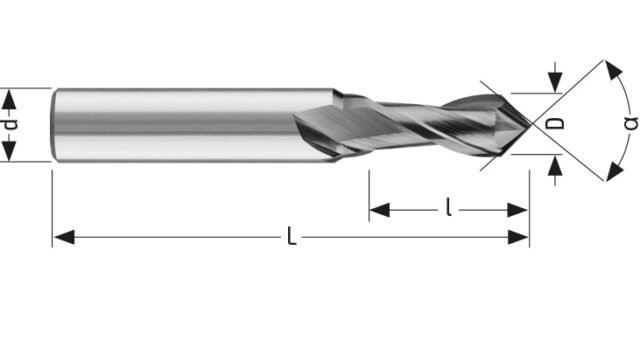

| D h9 | d h6 | L | l | α | Z |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|
| 1,00 | 3,00 | 39 | 2,00 | 90 | 2 | Alcrona | HMG330010 | ||
| 2,00 | 3,00 | 39 | 4,00 | 90 | 2 | Alcrona | HMG330020 | ||
| 3,00 | 4,00 | 50 | 6,00 | 90 | 2 | Alcrona | HMG330030 | ||
| 4,00 | 5,00 | 50 | 8,00 | 90 | 2 | Alcrona | HMG330040 | ||
| 5,00 | 6,00 | 50 | 10,00 | 90 | 2 | Alcrona | HMG330050 | ||
| 6,00 | 8,00 | 60 | 12,00 | 90 | 2 | Alcrona | HMG330060 | ||
| 8,00 | 10,00 | 70 | 16,00 | 90 | 2 | Alcrona | HMG330080 | ||
| 10,00 | 12,00 | 70 | 18,00 | 90 | 2 | Alcrona | HMG330100 | ||
| 1,00 | 3,00 | 39 | 2,00 | 90 | 2 | Uncoated | HM0330010 | ||
| 2,00 | 3,00 | 39 | 4,00 | 90 | 2 | Uncoated | HM0330020 | ||
| 3,00 | 4,00 | 50 | 6,00 | 90 | 2 | Uncoated | HM0330030 | ||
| 4,00 | 5,00 | 50 | 8,00 | 90 | 2 | Uncoated | HM0330040 | ||
| 5,00 | 6,00 | 50 | 10,00 | 90 | 2 | Uncoated | HM0330050 | ||
| 6,00 | 8,00 | 60 | 12,00 | 90 | 2 | Uncoated | HM0330060 | ||
| 8,00 | 10,00 | 70 | 16,00 | 90 | 2 | Uncoated | HM0330080 | ||
| 10,00 | 12,00 | 70 | 18,00 | 90 | 2 | Uncoated | HM0330100 |
