HM UNV
Universal end mills

731

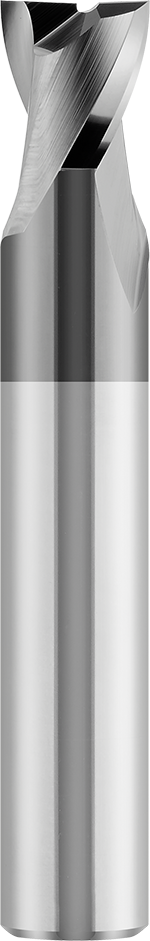

2 flute key slot end mill, short version

Unv 731
Series: Short
Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
D e8 d h6 L l Z Shank ref. Coatings
(Balinit®)
Code Order
2,00 6,00 50 3,00 2 HA Alcrona HMG731020
2,50 6,00 50 3,00 2 HA Alcrona HMG731025
3,00 6,00 50 4,00 2 HA Alcrona HMG731030
3,50 6,00 50 4,00 2 HA Alcrona HMG731035
4,00 6,00 54 5,00 2 HA Alcrona HMG731040
4,50 6,00 54 5,00 2 HA Alcrona HMG731045
5,00 6,00 54 6,00 2 HA Alcrona HMG731050
5,50 6,00 54 6,00 2 HA Alcrona HMG731055
6,00 6,00 54 7,00 2 HA Alcrona HMG731060
7,00 8,00 58 9,00 2 HA Alcrona HMG731070
8,00 8,00 58 9,00 2 HA Alcrona HMG731080
9,00 10,00 66 11,00 2 HA Alcrona HMG731090
10,00 10,00 66 11,00 2 HA Alcrona HMG731100
11,00 12,00 73 12,00 2 HA Alcrona HMG731110
12,00 12,00 73 12,00 2 HA Alcrona HMG731120
13,00 14,00 75 14,00 2 HA Alcrona HMG731130
14,00 14,00 75 14,00 2 HA Alcrona HMG731140
15,00 16,00 82 16,00 2 HA Alcrona HMG731150
16,00 16,00 82 16,00 2 HA Alcrona HMG731160
17,00 18,00 84 18,00 2 HA Alcrona HMG731170
18,00 18,00 84 18,00 2 HA Alcrona HMG731180
19,00 20,00 92 20,00 2 HA Alcrona HMG731190
20,00 20,00 92 20,00 2 HA Alcrona HMG731200
2,00 6,00 50 3,00 2 HA Futura HMF731020
2,50 6,00 50 3,00 2 HA Futura HMF731025
3,00 6,00 50 4,00 2 HA Futura HMF731030
3,50 6,00 50 4,00 2 HA Futura HMF731035
4,00 6,00 54 5,00 2 HA Futura HMF731040
4,50 6,00 54 5,00 2 HA Futura HMF731045
5,00 6,00 54 6,00 2 HA Futura HMF731050
5,50 6,00 54 6,00 2 HA Futura HMF731055
6,00 6,00 54 7,00 2 HA Futura HMF731060
7,00 8,00 58 9,00 2 HA Futura HMF731070
8,00 8,00 58 9,00 2 HA Futura HMF731080
9,00 10,00 66 11,00 2 HA Futura HMF731090
10,00 10,00 66 11,00 2 HA Futura HMF731100
11,00 12,00 73 12,00 2 HA Futura HMF731110
12,00 12,00 73 12,00 2 HA Futura HMF731120
13,00 14,00 75 14,00 2 HA Futura HMF731130
14,00 14,00 75 14,00 2 HA Futura HMF731140
15,00 16,00 82 16,00 2 HA Futura HMF731150
16,00 16,00 82 16,00 2 HA Futura HMF731160
17,00 18,00 84 18,00 2 HA Futura HMF731170
18,00 18,00 84 18,00 2 HA Futura HMF731180
19,00 20,00 92 20,00 2 HA Futura HMF731190
20,00 20,00 92 20,00 2 HA Futura HMF731200
2,00 6,00 50 3,00 2 HA Uncoated HM0731020
2,50 6,00 50 3,00 2 HA Uncoated HM0731025
3,00 6,00 50 4,00 2 HA Uncoated HM0731030
3,50 6,00 50 4,00 2 HA Uncoated HM0731035
