816S

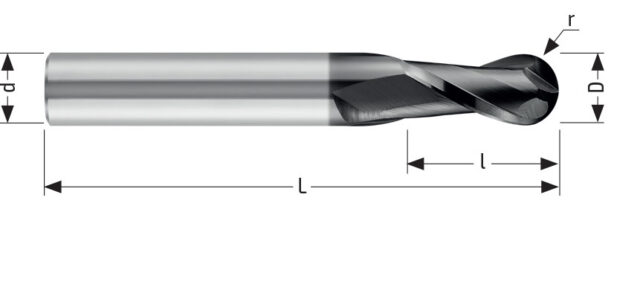

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
D h10 | d h6 | L | l | Cr/r | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
---|---|---|---|---|---|---|---|---|---|---|
1,00 | 3,00 | 38 | 3,00 | 0,50 | 2 | HA | Alcrona | 816S D.1 | ||
1,50 | 3,00 | 38 | 4,00 | 0,75 | 2 | HA | Alcrona | 816S D.1,5 | ||
1,00 | 6,00 | 53 | 3,00 | 0,50 | 2 | HA | Alcrona | 816S D.1 G6 | ||
1,50 | 6,00 | 53 | 4,00 | 0,75 | 2 | HA | Alcrona | 816S D.1,5 G6 | ||
2,00 | 3,00 | 38 | 5,00 | 1,00 | 2 | HA | Alcrona | 816S D.2 | ||
2,50 | 3,00 | 38 | 7,00 | 1,25 | 2 | HA | Alcrona | 816S D.2,5 | ||
2,00 | 6,00 | 53 | 5,00 | 1,00 | 2 | HA | Alcrona | 816S D.2 G6 | ||
2,50 | 6,00 | 53 | 7,00 | 1,25 | 2 | HA | Alcrona | 816S D.2,5 G6 | ||
3,00 | 4,00 | 50 | 7,00 | 1,50 | 2 | HA | Alcrona | 816S D.3 | ||
3,00 | 6,00 | 53 | 7,00 | 1,50 | 2 | HA | Alcrona | 816S D.3 G6 |
Request information
If you have any doubts, need a guide in choosing or simply want to have more information about this tool, please contact us.
