894SL
4 flute end mill long version with unequal flute spacing for stainless steel and mild steel
894SL

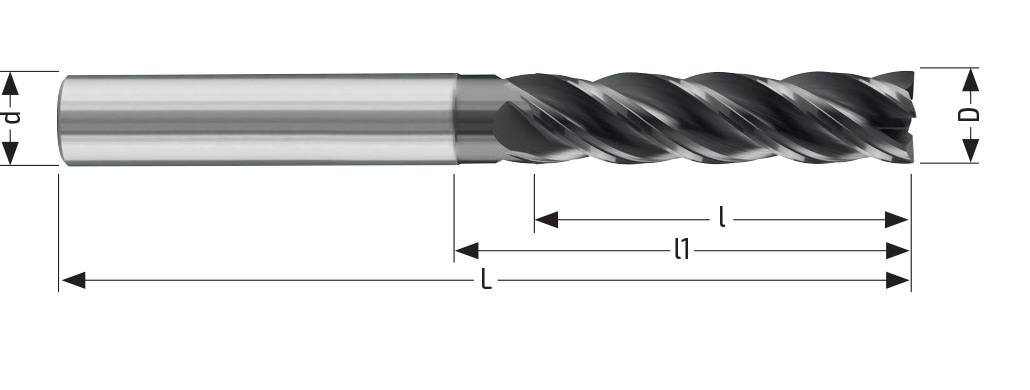

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D h10 | d h6 | L | l | l1 | a | 45° 0,05/+0 | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5,00 | 6,00 | 74 | 20,00 | 25,0 | 0,10 | 0,10 | 4 | HA | Alcrona | 894SL D. 5 | ||
| 5,00 | 6,00 | 74 | 20,00 | 25,0 | 0,10 | 0,10 | 4 | HB | Alcrona | 894SLW D. 5 | ||
| 6,00 | 6,00 | 74 | 24,00 | 30,0 | 0,15 | 0,10 | 4 | HA | Alcrona | 894SL D. 6 | ||
| 6,00 | 6,00 | 74 | 24,00 | 30,0 | 0,15 | 0,10 | 4 | HB | Alcrona | 894SLW D. 6 | ||
| 8,00 | 8,00 | 80 | 32,00 | 40,0 | 0,15 | 0,15 | 4 | HA | Alcrona | 894SL D. 8 | ||
| 8,00 | 8,00 | 80 | 32,00 | 40,0 | 0,15 | 0,15 | 4 | HB | Alcrona | 894SLW D. 8 | ||
| 10,00 | 10,00 | 87 | 40,00 | 46,0 | 0,15 | 0,15 | 4 | HA | Alcrona | 894SL D.10 | ||
| 10,00 | 10,00 | 87 | 40,00 | 46,0 | 0,15 | 0,15 | 4 | HB | Alcrona | 894SLW D.10 | ||
| 12,00 | 12,00 | 105 | 48,00 | 58,0 | 0,20 | 0,15 | 4 | HA | Alcrona | 894SL D.12 | ||
| 12,00 | 12,00 | 105 | 48,00 | 58,0 | 0,20 | 0,15 | 4 | HB | Alcrona | 894SLW D.12 | ||
| 14,00 | 14,00 | 105 | 48,00 | 58,0 | 0,20 | 0,15 | 4 | HA | Alcrona | 894SL D.14 | ||
| 14,00 | 14,00 | 105 | 26,00 | — | — | 0,15 | — | HB | Alcrona | 894SLW D.14 | ||
| 16,00 | 16,00 | 105 | 48,00 | 58,0 | 0,20 | 0,15 | 4 | HA | Alcrona | 894SL D.16 | ||
| 16,00 | 16,00 | 120 | 64,00 | 68,0 | 0,20 | 0,20 | 4 | HB | Alcrona | 894SLW D.16 | ||
| 20,00 | 20,00 | 160 | 64,00 | 68,0 | 0,20 | 0,20 | 4 | HA | Alcrona | 894SL D.20 | ||
| 20,00 | 20,00 | 160 | 70,00 | 80,0 | 0,20 | 0,20 | 4 | HB | Alcrona | 894SLW D.20 |
Brochure
Business Cases
Request information
If you have any doubts, need a guide in choosing or simply want to have more information about this tool, please contact us.
