0043
4 flute end mill 3xD for trochoidal milling of hardened steel
0043

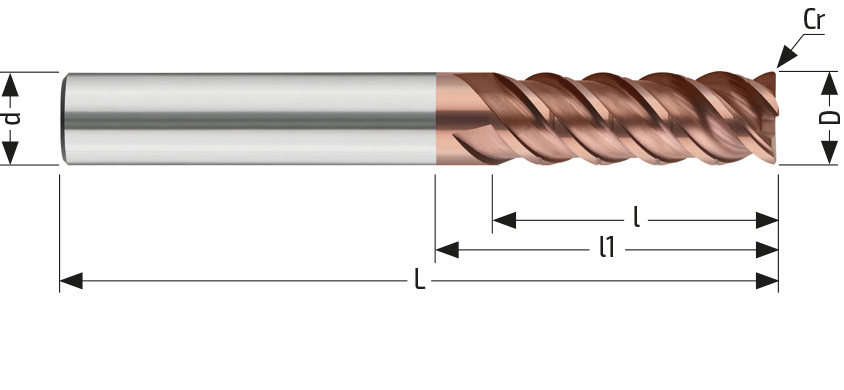

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Stock
Products :
| D h10 | Cr/r | l | l1 | a | L | d h5 | Z | Rif. gambo |
Coatings (Balinit®) |
Code | Stock | Order | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6,00 | 0,50 | 18,00 | 22,0 | 0,15 | 60 | 6,00 | 4 | HB | Tisaflex | F00430H00600001 | |||
| 8,00 | 0,50 | 24,00 | 28,0 | 0,15 | 66 | 8,00 | 4 | HB | Tisaflex | F00430H00800001 | |||
| 10,00 | 0,50 | 30,00 | 35,0 | 0,15 | 78 | 10,00 | 4 | HB | Tisaflex | F00430H01000001 | |||
| 12,00 | 0,50 | 36,00 | 42,0 | 0,20 | 92 | 12,00 | 4 | HB | Tisaflex | F00430H01200001 | |||
| 16,00 | 1,00 | 48,00 | 56,0 | 0,20 | 110 | 16,00 | 4 | HB | Tisaflex | F00430H01600001 | |||
| 20,00 | 1,00 | 60,00 | 70,0 | 0,20 | 125 | 20,00 | 4 | HB | Tisaflex | F00430H02000001 |
Brochure
Request information
If you have any doubts, need a guide in choosing or simply want to have more information about this tool, please contact us.
