503

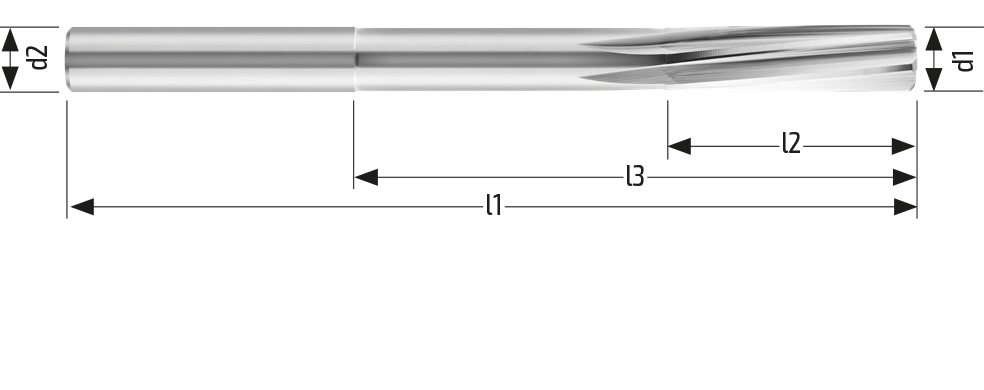

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D +0,005/+0 | d h8 | L | l | l1 | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9,10 | 9,00 | 125 | 36,00 | 80,0 | 6 | HA | Uncoated | HM05030910 | ||
| 0,90 | 0,90 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030090 | ||
| 0,91 | 0,91 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030091 | ||
| 0,92 | 0,92 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030092 | ||
| 0,93 | 0,93 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030093 | ||
| 0,94 | 0,94 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030094 | ||
| 0,95 | 0,95 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030095 | ||
| 0,96 | 0,96 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030096 | ||
| 0,97 | 0,97 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030097 | ||
| 0,98 | 0,98 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030098 | ||
| 0,99 | 0,99 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030099 | ||
| 1,00 | 1,00 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030100 | ||
| 1,01 | 1,01 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030101 | ||
| 1,02 | 1,02 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030102 | ||
| 1,03 | 1,03 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030103 | ||
| 1,04 | 1,04 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030104 | ||
| 1,05 | 1,05 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030105 | ||
| 1,06 | 1,06 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030106 | ||
| 1,07 | 1,07 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030107 | ||
| 1,08 | 1,08 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030108 | ||
| 1,09 | 1,09 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030109 | ||
| 1,10 | 1,10 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030110 | ||
| 1,11 | 1,11 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030111 | ||
| 1,12 | 1,12 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030112 | ||
| 1,13 | 1,13 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030113 | ||
| 1,14 | 1,14 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030114 | ||
| 1,15 | 1,15 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030115 | ||
| 1,16 | 1,16 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030116 | ||
| 1,17 | 1,17 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030117 | ||
| 1,18 | 1,18 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030118 | ||
| 1,19 | 1,19 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030119 | ||
| 1,20 | 1,20 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030120 | ||
| 1,21 | 1,21 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030121 | ||
| 1,22 | 1,22 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030122 | ||
| 1,23 | 1,23 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030123 | ||
| 1,24 | 1,24 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030124 | ||
| 1,25 | 1,25 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030125 | ||
| 1,26 | 1,26 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030126 | ||
| 1,27 | 1,27 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030127 | ||
| 1,28 | 1,28 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030128 | ||
| 1,29 | 1,29 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030129 | ||
| 1,30 | 1,30 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030130 | ||
| 1,31 | 1,31 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030131 | ||
| 1,32 | 1,32 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030132 | ||
| 1,33 | 1,33 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030133 | ||
| 1,34 | 1,34 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030134 | ||
| 1,35 | 1,35 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030135 | ||
| 1,36 | 1,36 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030136 | ||
| 1,37 | 1,37 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030137 | ||
| 1,38 | 1,38 | 40 | 8,00 | — | 4 | HA | Alcrona | HMG5030138 |
