ALU / 175
2 flute end mill, regular version
Details

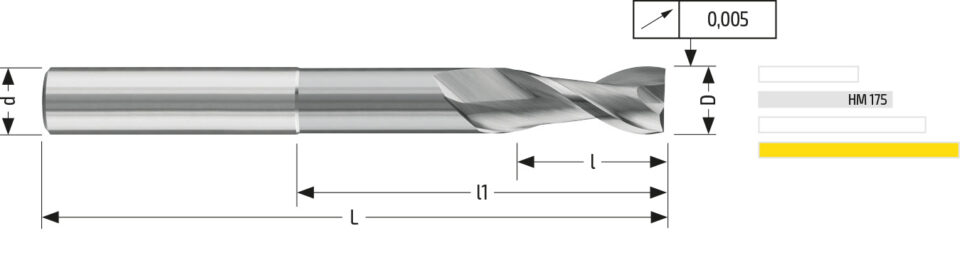

| D | Diameter of cutting edge | 10,00 h6 | |
| d | Shank diameter | 10,00 h6 | |
| L | Overall length | 104 | |
| l | Cutting length | 22,00 | |
| l1 | Neck relief length | 55,0 | |
| a | Neck relief depth | 0,15 | |
| Z | Number of flutes | 2 | |
| Shank ref. | Shank references standard | HA | |
| Coating | AluCon® | HMA | |
Materials
N.1 Pure Aluminum
N.2 Low Silicon Aluminum Alloys, Magnesium Alloys, Si<12%
N.3 High Silicon Aluminum Alloys, Si>12%
N.4 Copper, Brass, Zinc-based Alloys
O.1 Thermoplastic and Thermosetting Materials
Working Parameters
Select a machining / material combination to view the related working parameters. Experienced users can change the value of Vc within the defined range of values and the values of Ap and Ae.
Machining
Slotting
Material Table of Materials
N.1 Pure Aluminum
Axial depth of cut
Ap
Ap 5.00 mm
Radial depth of cut
Ae
Ae 10.00 mm
Cutting speed (200/400)
Vc
Parameters
Vc
fz [mm]
n [rpm]
F [mm/min]
Ap [mm]
Ae [mm]
Q [cm³/min]
Notes
Alternative Series
