311
Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :

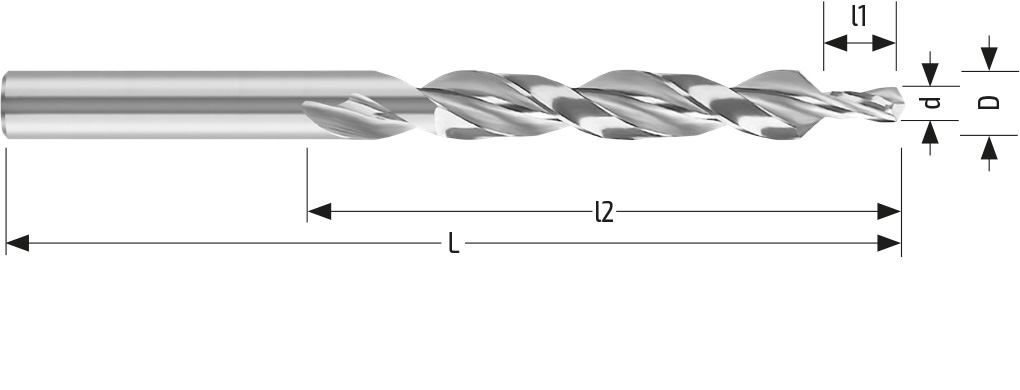

| dv | D h8 | d | L2 | L | α | d1 | l1 | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M3 | 6,30 | 6,30 | 52,0 | 90 | 90 | 3,2 | 11,0 | 2 | FORMA | Uncoated | UTP311032 | ||
| M3 | 6,60 | 6,60 | 63,0 | 101 | 90 | 3,4 | 9,0 | 2 | FORMA | Uncoated | UTP311003 | ||
| M4 | 8,30 | 8,30 | 63,0 | 105 | 90 | 4,3 | 13,0 | 2 | FORMA | Uncoated | UTP311042 | ||
| M4 | 9,00 | 9,00 | 81,0 | 125 | 90 | 4,5 | 11,0 | 2 | FORMA | Uncoated | UTP311004 | ||
| M5 | 10,40 | 10,40 | 83,0 | 133 | 90 | 5,3 | 16,0 | 2 | FORMA | Uncoated | UTP311052 | ||
| M5 | 11,00 | 11,00 | 94,0 | 142 | 90 | 5,5 | 13,0 | 2 | FORMA | Uncoated | UTP311005 | ||
| M6 | 12,40 | 12,40 | 90,0 | 142 | 90 | 6,4 | 20,0 | 2 | FORMA | Uncoated | UTP311062 | ||
| M6 | 13,00 | 13,00 | 101,0 | 151 | 90 | 6,6 | 15,0 | 2 | FORMA | Uncoated | UTP311006 | ||
| M8 | 16,50 | 13,50 | 115,0 | 186 | 90 | 8,4 | 23,0 | 2 | FORMA | Uncoated | UTP311082 | ||
| M8 | 17,20 | 13,50 | 130,0 | 191 | 90 | 9,0 | 19,0 | 2 | FORMA | Uncoated | UTP311008 |
