HM TIS
Titanium, super alloys and stainless steel end mills

133

4 flute ball nose end mill, long version

Tis 133

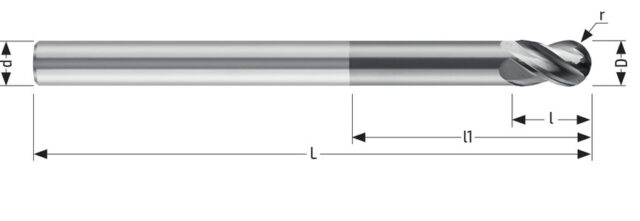

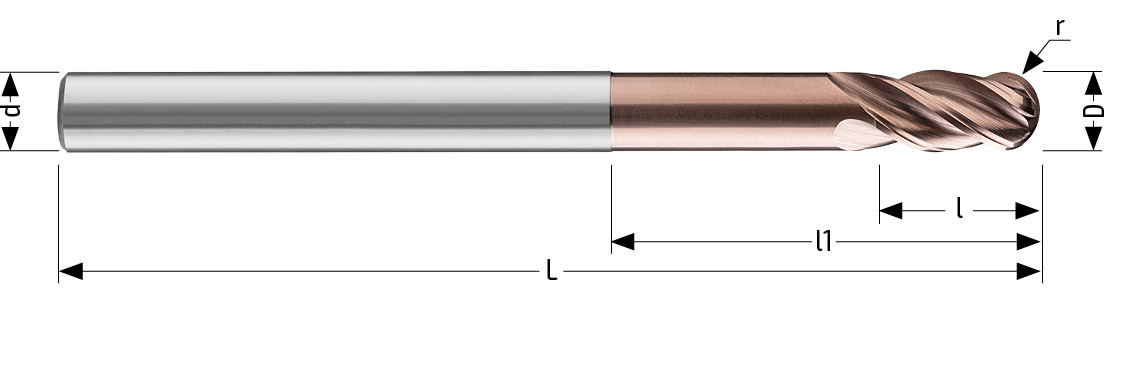

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
D d h6 L l l1 a Cr/r Z Shank ref. Coatings
(Balinit®)
Code Order
3,00 6,00 78 7,00 16,0 0,10 1,50 4 HA Tisaflex HMH133030
4,00 6,00 78 8,00 21,0 0,10 2,00 4 HA Tisaflex HMH133040
5,00 6,00 105 10,00 26,0 0,10 2,50 4 HA Tisaflex HMH133050
6,00 6,00 105 10,00 31,0 0,15 3,00 4 HA Tisaflex HMH133060
8,00 8,00 105 16,00 41,0 0,15 4,00 4 HA Tisaflex HMH133080
10,00 10,00 120 19,00 52,0 0,15 5,00 4 HA Tisaflex HMH133100
12,00 12,00 125 22,00 62,0 0,20 6,00 4 HA Tisaflex HMH133120
3,00 6,00 78 7,00 16,0 0,10 1,50 4 HA Latuma HMC133030
4,00 6,00 78 8,00 21,0 0,10 2,00 4 HA Latuma HMC133040
5,00 6,00 105 10,00 26,0 0,10 2,50 4 HA Latuma HMC133050
6,00 6,00 105 10,00 31,0 0,15 3,00 4 HA Latuma HMC133060
8,00 8,00 105 16,00 41,0 0,15 4,00 4 HA Latuma HMC133080
10,00 10,00 120 19,00 52,0 0,15 5,00 4 HA Latuma HMC133100
12,00 12,00 125 22,00 62,0 0,20 6,00 4 HA Latuma HMC133120
