1195H
5 flute end mill 5xD with unequal flute spacing for dynamic milling
1195H

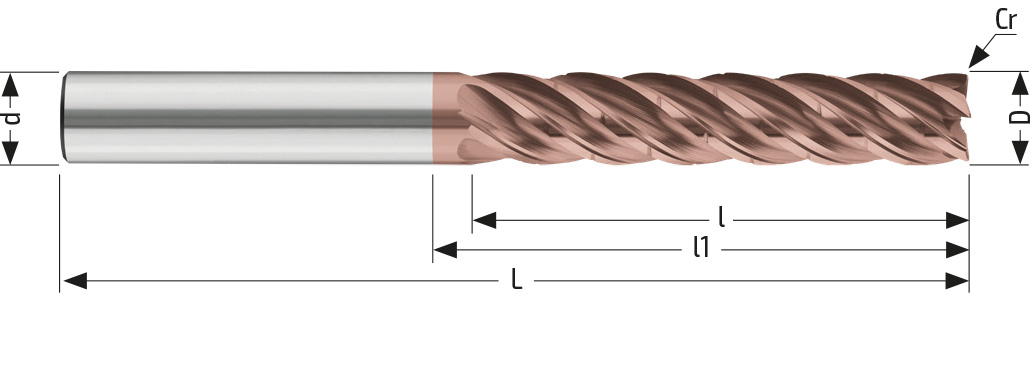

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D h10 | d h5 | L | l | l1 | a | Cr/r | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6,00 | 6,00 | 74 | 30,00 | 35,0 | 0,15 | 0,50 | 5 | HA | Tisaflex | F11950H00600001 | ||
| 8,00 | 8,00 | 84 | 40,00 | 45,0 | 0,15 | 0,50 | 5 | HA | Tisaflex | F11950H00800001 | ||
| 10,00 | 10,00 | 100 | 50,00 | 55,0 | 0,15 | 0,50 | 5 | HB | Tisaflex | F11950H01000001 | ||
| 12,00 | 12,00 | 115 | 60,00 | 66,0 | 0,20 | 0,50 | 5 | HB | Tisaflex | F11950H01200001 | ||
| 16,00 | 16,00 | 142 | 80,00 | 88,0 | 0,20 | 1,00 | 5 | HB | Tisaflex | F11950H01600001 | ||
| 20,00 | 20,00 | 165 | 100,00 | 110,0 | 0,20 | 1,00 | 5 | HB | Tisaflex | F11950H02000001 | ||
| 25,00 | 25,00 | 200 | 125,00 | 138,0 | 0,25 | 1,00 | 5 | HB | Tisaflex | F11950H02500001 |
Brochure
Request information
If you have any doubts, need a guide in choosing or simply want to have more information about this tool, please contact us.
