038F

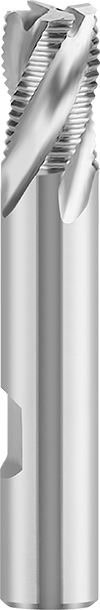

Roughing end mill, regular version
SIL
NIG
038F
Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D k12 | d | L | l | 45° | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|
| 5,00 | 6,00 | 52 | 8,00 | 0,50 | 4 | FORMB | Uncoated | SIL038F05 | ||
| 6,00 | 6,00 | 52 | 8,00 | 0,50 | 4 | FORMB | Uncoated | SIL038F06 | ||
| 7,00 | 10,00 | 60 | 10,00 | 0,50 | 4 | FORMB | Uncoated | SIL038F07 | ||
| 8,00 | 10,00 | 61 | 11,00 | 0,50 | 4 | FORMB | Uncoated | SIL038F08 | ||
| 9,00 | 10,00 | 61 | 11,00 | 0,50 | 4 | FORMB | Uncoated | SIL038F09 | ||
| 10,00 | 10,00 | 63 | 13,00 | 0,50 | 4 | FORMB | Uncoated | SIL038F10 | ||
| 11,00 | 12,00 | 70 | 13,00 | 0,50 | 4 | FORMB | Uncoated | SIL038F11 | ||
| 12,00 | 12,00 | 73 | 16,00 | 0,60 | 4 | FORMB | Uncoated | SIL038F12 | ||
| 13,00 | 12,00 | 73 | 16,00 | 0,60 | 4 | FORMB | Uncoated | SIL038F13 | ||
| 14,00 | 12,00 | 73 | 16,00 | 0,60 | 4 | FORMB | Uncoated | SIL038F14 | ||
| 15,00 | 12,00 | 73 | 16,00 | 0,60 | 4 | FORMB | Uncoated | SIL038F15 | ||
| 16,00 | 16,00 | 79 | 19,00 | 0,60 | 4 | FORMB | Uncoated | SIL038F16 | ||
| 17,00 | 16,00 | 79 | 19,00 | 0,60 | 4 | FORMB | Uncoated | SIL038F17 | ||
| 18,00 | 16,00 | 79 | 19,00 | 0,60 | 4 | FORMB | Uncoated | SIL038F18 | ||
| 19,00 | 16,00 | 79 | 19,00 | 0,60 | 4 | FORMB | Uncoated | SIL038F19 | ||
| 20,00 | 20,00 | 88 | 22,00 | 0,70 | 4 | FORMB | Uncoated | SIL038F20 | ||
| 22,00 | 20,00 | 88 | 22,00 | 0,70 | 4 | FORMB | Uncoated | SIL038F22 | ||
| 25,00 | 25,00 | 102 | 26,00 | 0,70 | 4 | FORMB | Uncoated | SIL038F25 | ||
| 30,00 | 25,00 | 102 | 26,00 | 0,90 | 6 | FORMB | Uncoated | SIL038F30 | ||
| 32,00 | 32,00 | 112 | 32,00 | 1,00 | 6 | FORMB | Uncoated | SIL038F32 | ||
| 5,00 | 6,00 | 52 | 8,00 | 0,50 | 4 | FORMB | Alcrona | NIG038F05 | ||
| 6,00 | 6,00 | 52 | 8,00 | 0,50 | 4 | FORMB | Alcrona | NIG038F06 | ||
| 7,00 | 10,00 | 60 | 10,00 | 0,50 | 4 | FORMB | Alcrona | NIG038F07 | ||
| 8,00 | 10,00 | 61 | 11,00 | 0,50 | 4 | FORMB | Alcrona | NIG038F08 | ||
| 9,00 | 10,00 | 61 | 11,00 | 0,50 | 4 | FORMB | Alcrona | NIG038F09 | ||
| 10,00 | 10,00 | 63 | 13,00 | 0,50 | 4 | FORMB | Alcrona | NIG038F10 | ||
| 11,00 | 12,00 | 70 | 13,00 | 0,50 | 4 | FORMB | Alcrona | NIG038F11 | ||
| 12,00 | 12,00 | 73 | 16,00 | 0,60 | 4 | FORMB | Alcrona | NIG038F12 | ||
| 13,00 | 12,00 | 73 | 16,00 | 0,60 | 4 | FORMB | Alcrona | NIG038F13 | ||
| 14,00 | 12,00 | 73 | 16,00 | 0,60 | 4 | FORMB | Alcrona | NIG038F14 | ||
| 15,00 | 12,00 | 73 | 16,00 | 0,60 | 4 | FORMB | Alcrona | NIG038F15 | ||
| 16,00 | 16,00 | 79 | 19,00 | 0,60 | 4 | FORMB | Alcrona | NIG038F16 | ||
| 17,00 | 16,00 | 79 | 19,00 | 0,60 | 4 | FORMB | Alcrona | NIG038F17 | ||
| 18,00 | 16,00 | 79 | 19,00 | 0,60 | 4 | FORMB | Alcrona | NIG038F18 | ||
| 19,00 | 16,00 | 79 | 19,00 | 0,60 | 4 | FORMB | Alcrona | NIG038F19 | ||
| 20,00 | 20,00 | 88 | 22,00 | 0,70 | 4 | FORMB | Alcrona | NIG038F20 | ||
| 22,00 | 20,00 | 88 | 22,00 | 0,70 | 4 | FORMB | Alcrona | NIG038F22 | ||
| 25,00 | 25,00 | 102 | 26,00 | 0,70 | 4 | FORMB | Alcrona | NIG038F25 | ||
| 30,00 | 25,00 | 102 | 26,00 | 0,90 | 6 | FORMB | Alcrona | NIG038F30 | ||
| 32,00 | 32,00 | 112 | 32,00 | 1,00 | 6 | FORMB | Alcrona | NIG038F32 |
