Utensile HSS SGR 025 - Vista verticale

025

Roughing end mill, long version

Items: 9 | Diameters: 9 | Coatings: 1 | Front types: 1

Utensile HSS SGR 025 - Vista orizzontale

025

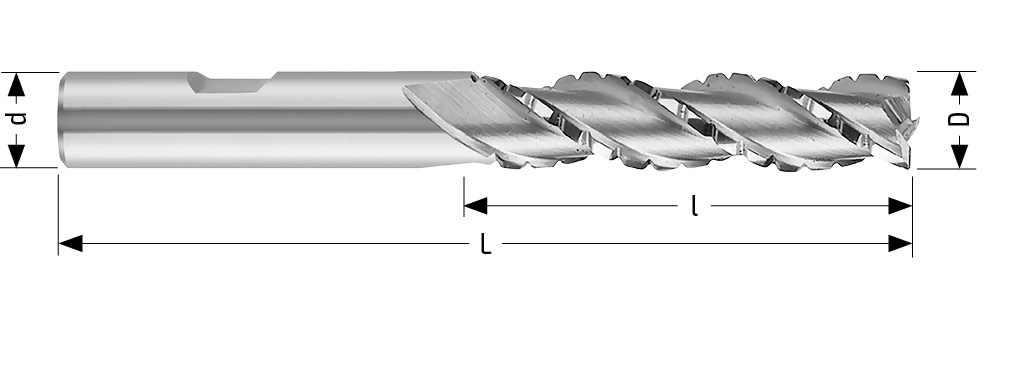

Utensile HSS SGR 025 - Vista con quotature

Diameter of cutting edge

Corner radius

Cutting length

Neck relief length

Overall length

Products :
Dk12 d L l 45° Z Shank ref. Coatings
(Balinit®) 		Code Order
6,00 6,00 68 24,00 0,10 3 FORMB HMG - Alcrona NIG025006
8,00 10,00 88 38,00 0,10 3 FORMB HMG - Alcrona NIG025008
10,00 10,00 95 45,00 0,20 3 FORMB HMG - Alcrona NIG025010
12,00 12,00 110 53,00 0,20 3 FORMB HMG - Alcrona NIG025012
16,00 16,00 123 63,00 0,20 3 FORMB HMG - Alcrona NIG025016
20,00 20,00 141 75,00 0,20 3 FORMB HMG - Alcrona NIG025020
25,00 25,00 166 90,00 0,20 3 FORMB HMG - Alcrona NIG025025
30,00 25,00 166 90,00 0,20 3 FORMB HMG - Alcrona NIG025030
32,00 32,00 186 106,00 0,20 3 FORMB HMG - Alcrona NIG025032
