013R

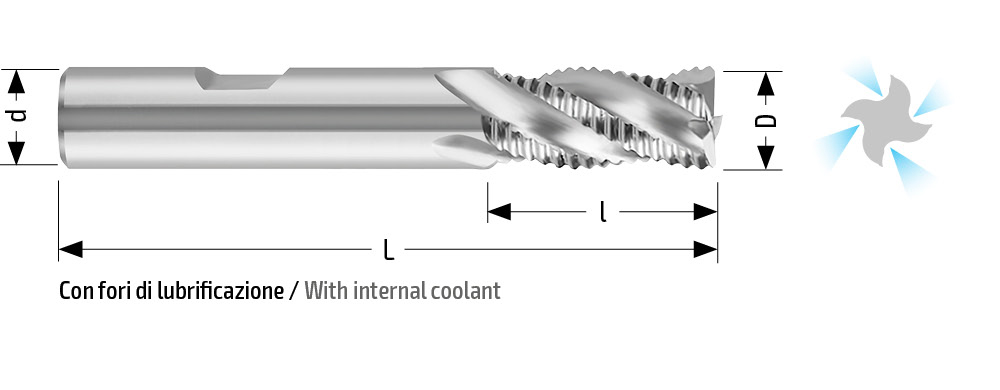

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D k12 | d | L | l | 45° | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|
| 16,00 | 16,00 | 92 | 32,00 | 0,60 | 4 | FORMB | Alcrona | RMG013F16 | ||
| 18,00 | 16,00 | 92 | 32,00 | 0,60 | 4 | FORMB | Alcrona | RMG013F18 | ||
| 20,00 | 20,00 | 104 | 38,00 | 0,70 | 4 | FORMB | Alcrona | RMG013F20 | ||
| 22,00 | 20,00 | 104 | 38,00 | 0,70 | 4 | FORMB | Alcrona | RMG013F22 | ||
| 25,00 | 25,00 | 121 | 45,00 | 0,70 | 4 | FORMB | Alcrona | RMG013F25 | ||
| 28,00 | 25,00 | 121 | 45,00 | 0,90 | 6 | FORMB | Alcrona | RMG013F28 | ||
| 30,00 | 25,00 | 121 | 45,00 | 0,90 | 6 | FORMB | Alcrona | RMG013F30 | ||
| 32,00 | 32,00 | 133 | 53,00 | 0,90 | 6 | FORMB | Alcrona | RMG013F32 | ||
| 36,00 | 32,00 | 133 | 53,00 | 0,90 | 6 | FORMB | Alcrona | RMG013F36 |
