013F
Roughing end mill, regular version
SIL
NIG
013F

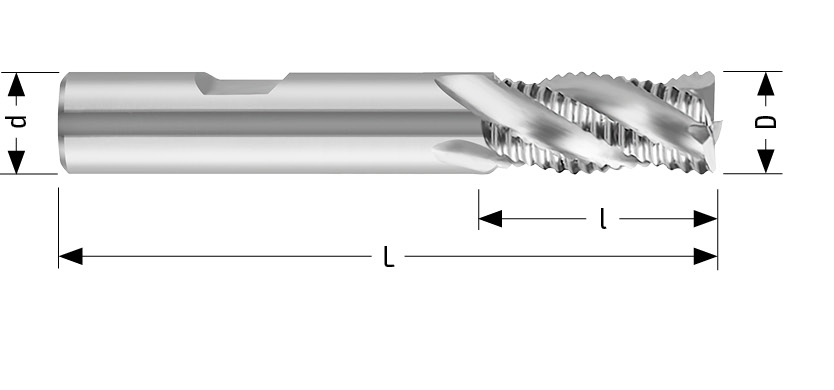

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D k12 | d | L | l | 45° | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4,50 | 6,00 | 55 | 11,00 | 0,40 | 4 | FORMB | Uncoated | SIL013F045 | ||
| 5,00 | 6,00 | 57 | 13,00 | 0,50 | 4 | FORMB | Uncoated | SIL013F05 | ||
| 5,50 | 6,00 | 57 | 13,00 | 0,50 | 4 | FORMB | Uncoated | SIL013F055 | ||
| 6,00 | 6,00 | 57 | 13,00 | 0,50 | 4 | FORMB | Uncoated | SIL013F06 | ||
| 6,50 | 10,00 | 66 | 16,00 | 0,50 | 4 | FORMB | Uncoated | SIL013F065 | ||
| 7,00 | 10,00 | 66 | 16,00 | 0,50 | 4 | FORMB | Uncoated | SIL013F07 | ||
| 7,50 | 10,00 | 69 | 19,00 | 0,50 | 4 | FORMB | Uncoated | SIL013F075 | ||
| 8,00 | 10,00 | 69 | 19,00 | 0,50 | 4 | FORMB | Uncoated | SIL013F08 | ||
| 8,50 | 10,00 | 69 | 19,00 | 0,50 | 4 | FORMB | Uncoated | SIL013F085 | ||
| 9,00 | 10,00 | 69 | 19,00 | 0,50 | 4 | FORMB | Uncoated | SIL013F09 | ||
| 9,50 | 10,00 | 72 | 22,00 | 0,50 | 4 | FORMB | Uncoated | SIL013F095 | ||
| 10,00 | 10,00 | 72 | 22,00 | 0,50 | 4 | FORMB | Uncoated | SIL013F10 | ||
| 10,50 | 12,00 | 79 | 22,00 | 0,50 | 4 | FORMB | Uncoated | SIL013F105 | ||
| 11,00 | 12,00 | 79 | 22,00 | 0,50 | 4 | FORMB | Uncoated | SIL013F11 | ||
| 12,00 | 12,00 | 83 | 26,00 | 0,60 | 4 | FORMB | Uncoated | SIL013F12 | ||
| 13,00 | 12,00 | 83 | 26,00 | 0,60 | 4 | FORMB | Uncoated | SIL013F13 | ||
| 14,00 | 12,00 | 83 | 26,00 | 0,60 | 4 | FORMB | Uncoated | SIL013F14 | ||
| 15,00 | 12,00 | 83 | 26,00 | 0,60 | 4 | FORMB | Uncoated | SIL013F15 | ||
| 16,00 | 16,00 | 92 | 32,00 | 0,60 | 4 | FORMB | Uncoated | SIL013F16 | ||
| 17,00 | 16,00 | 92 | 32,00 | 0,60 | 4 | FORMB | Uncoated | SIL013F17 | ||
| 18,00 | 16,00 | 92 | 32,00 | 0,60 | 4 | FORMB | Uncoated | SIL013F18 | ||
| 19,00 | 16,00 | 92 | 32,00 | 0,60 | 4 | FORMB | Uncoated | SIL013F19 | ||
| 20,00 | 20,00 | 104 | 38,00 | 0,70 | 4 | FORMB | Uncoated | SIL013F20 | ||
| 22,00 | 20,00 | 104 | 38,00 | 0,70 | 4 | FORMB | Uncoated | SIL013F22 | ||
| 24,00 | 25,00 | 121 | 45,00 | 0,70 | 4 | FORMB | Uncoated | SIL013F24 | ||
| 25,00 | 25,00 | 121 | 45,00 | 0,70 | 4 | FORMB | Uncoated | SIL013F25 | ||
| 26,00 | 25,00 | 121 | 45,00 | 0,70 | 4 | FORMB | Uncoated | SIL013F26 | ||
| 28,00 | 25,00 | 121 | 45,00 | 0,90 | 6 | FORMB | Uncoated | SIL013F28 | ||
| 30,00 | 25,00 | 121 | 45,00 | 0,90 | 6 | FORMB | Uncoated | SIL013F30 | ||
| 32,00 | 32,00 | 133 | 53,00 | 0,90 | 6 | FORMB | Uncoated | SIL013F32 | ||
| 36,00 | 32,00 | 133 | 53,00 | 0,90 | 6 | FORMB | Uncoated | SIL013F36 | ||
| 40,00 | 40,00 | 155 | 63,00 | 0,90 | 6 | FORMB | Uncoated | SIL013F40 | ||
| 45,00 | 40,00 | 155 | 63,00 | 0,90 | 6 | FORMB | Uncoated | SIL013F45 | ||
| 50,00 | 50,00 | 177 | 75,00 | 0,90 | 6 | FORMB | Uncoated | SIL013F50 | ||
| 4,50 | 6,00 | 55 | 11,00 | 0,40 | 4 | FORMB | Alcrona | NIG013F045 | ||
| 5,00 | 6,00 | 57 | 13,00 | 0,50 | 4 | FORMB | Alcrona | NIG013F05 | ||
| 5,50 | 6,00 | 57 | 13,00 | 0,50 | 4 | FORMB | Alcrona | NIG013F055 | ||
| 6,00 | 6,00 | 57 | 13,00 | 0,50 | 4 | FORMB | Alcrona | NIG013F06 | ||
| 6,50 | 10,00 | 66 | 16,00 | 0,50 | 4 | FORMB | Alcrona | NIG013F065 | ||
| 7,00 | 10,00 | 66 | 16,00 | 0,50 | 4 | FORMB | Alcrona | NIG013F07 | ||
| 7,50 | 10,00 | 69 | 19,00 | 0,50 | 4 | FORMB | Alcrona | NIG013F075 | ||
| 8,00 | 10,00 | 69 | 19,00 | 0,50 | 4 | FORMB | Alcrona | NIG013F08 | ||
| 8,50 | 10,00 | 69 | 19,00 | 0,50 | 4 | FORMB | Alcrona | NIG013F085 | ||
| 9,00 | 10,00 | 69 | 19,00 | 0,50 | 4 | FORMB | Alcrona | NIG013F09 | ||
| 9,50 | 10,00 | 72 | 22,00 | 0,50 | 4 | FORMB | Alcrona | NIG013F095 | ||
| 10,00 | 10,00 | 72 | 22,00 | 0,50 | 4 | FORMB | Alcrona | NIG013F10 | ||
| 10,50 | 12,00 | 79 | 22,00 | 0,50 | 4 | FORMB | Alcrona | NIG013F105 | ||
| 11,00 | 12,00 | 79 | 22,00 | 0,50 | 4 | FORMB | Alcrona | NIG013F11 | ||
| 12,00 | 12,00 | 83 | 26,00 | 0,60 | 4 | FORMB | Alcrona | NIG013F12 | ||
| 13,00 | 12,00 | 83 | 26,00 | 0,60 | 4 | FORMB | Alcrona | NIG013F13 |
