362
Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :

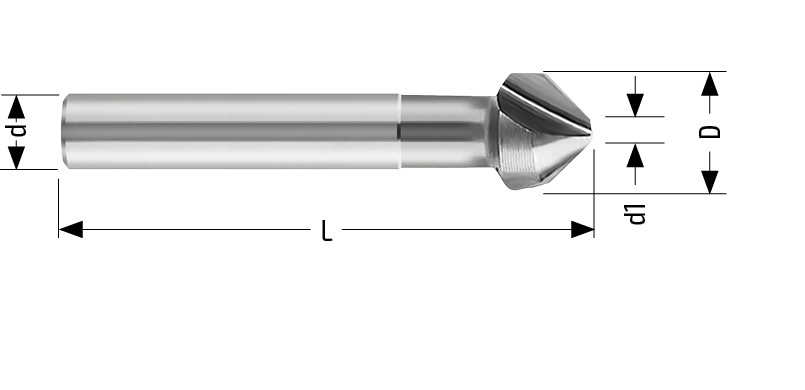

| D Z9 | d | L | α | d1 | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4,30 | 4,00 | 40 | 90 | 1,3 | 3 | FORMA | Uncoated | PSV362043 | ||
| 5,30 | 4,00 | 40 | 90 | 1,5 | 3 | FORMA | Uncoated | PSV362053 | ||
| 6,30 | 5,00 | 45 | 90 | 2,0 | 3 | FORMA | Uncoated | PSV362063 | ||
| 7,30 | 6,00 | 50 | 90 | 2,0 | 3 | FORMA | Uncoated | PSV362073 | ||
| 8,30 | 6,00 | 50 | 90 | 2,5 | 3 | FORMA | Uncoated | PSV362083 | ||
| 9,40 | 6,00 | 50 | 90 | 3,0 | 3 | FORMA | Uncoated | PSV362094 | ||
| 10,40 | 6,00 | 50 | 90 | 3,0 | 3 | FORMA | Uncoated | PSV362104 | ||
| 12,40 | 8,00 | 56 | 90 | 3,0 | 3 | FORMA | Uncoated | PSV362124 | ||
| 16,50 | 10,00 | 60 | 90 | 4,0 | 3 | FORMA | Uncoated | PSV362165 | ||
| 20,50 | 10,00 | 63 | 90 | 4,0 | 3 | FORMA | Uncoated | PSV362205 | ||
| 25,00 | 10,00 | 67 | 90 | 4,0 | 3 | FORMA | Uncoated | PSV362250 | ||
| 31,00 | 12,00 | 71 | 90 | 4,0 | 3 | FORMA | Uncoated | PSV362310 | ||
| 4,30 | 4,00 | 40 | 90 | 1,3 | 3 | FORMA | Alcrona | NIG362043 | ||
| 5,30 | 4,00 | 40 | 90 | 1,5 | 3 | FORMA | Alcrona | NIG362053 | ||
| 6,30 | 5,00 | 45 | 90 | 2,0 | 3 | FORMA | Alcrona | NIG362063 | ||
| 7,30 | 6,00 | 50 | 90 | 2,0 | 3 | FORMA | Alcrona | NIG362073 | ||
| 8,30 | 6,00 | 50 | 90 | 2,5 | 3 | FORMA | Alcrona | NIG362083 | ||
| 9,40 | 6,00 | 50 | 90 | 3,0 | 3 | FORMA | Alcrona | NIG362094 | ||
| 10,40 | 6,00 | 50 | 90 | 3,0 | 3 | FORMA | Alcrona | NIG362104 | ||
| 12,40 | 8,00 | 56 | 90 | 3,0 | 3 | FORMA | Alcrona | NIG362124 | ||
| 16,50 | 10,00 | 60 | 90 | 4,0 | 3 | FORMA | Alcrona | NIG362165 | ||
| 20,50 | 10,00 | 63 | 90 | 4,0 | 3 | FORMA | Alcrona | NIG362205 | ||
| 25,00 | 10,00 | 67 | 90 | 4,0 | 3 | FORMA | Alcrona | NIG362250 | ||
| 31,00 | 12,00 | 71 | 90 | 4,0 | 3 | FORMA | Alcrona | NIG362310 |
