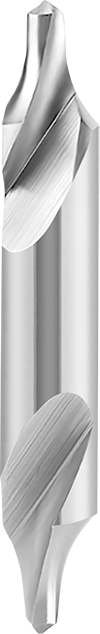

356
Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D | d k12 | L | l | r | P |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|
| 4,00 | 1,60 | 35 | 4,20 | 4,00 | 3,25 | Uncoated | PCC356160 | ||
| 5,00 | 2,00 | 40 | 5,00 | 5,00 | 4,20 | Uncoated | PCC356200 | ||
| 6,30 | 2,50 | 45 | 6,30 | 6,30 | 5,35 | Uncoated | PCC356250 | ||
| 8,00 | 3,15 | 50 | 8,00 | 8,00 | 6,95 | Uncoated | PCC356315 | ||
| 10,00 | 4,00 | 55 | 10,00 | 10,00 | 8,40 | Uncoated | PCC356400 | ||
| 12,50 | 5,00 | 63 | 12,50 | 12,50 | 10,95 | Uncoated | PCC356500 | ||
| 16,00 | 6,30 | 71 | 16,00 | 16,00 | 14,00 | Uncoated | PCC356630 | ||
| 5,00 | 2,00 | 40 | 5,00 | 5,00 | 4,20 | Alcrona | NIG356200 | ||
| 6,30 | 2,50 | 45 | 6,30 | 6,30 | 5,35 | Alcrona | NIG356250 | ||
| 8,00 | 3,15 | 50 | 8,00 | 8,00 | 6,95 | Alcrona | NIG356315 | ||
| 10,00 | 4,00 | 55 | 10,00 | 10,00 | 8,40 | Alcrona | NIG356400 | ||
| 12,50 | 5,00 | 63 | 12,50 | 12,50 | 10,95 | Alcrona | NIG356500 |
