355

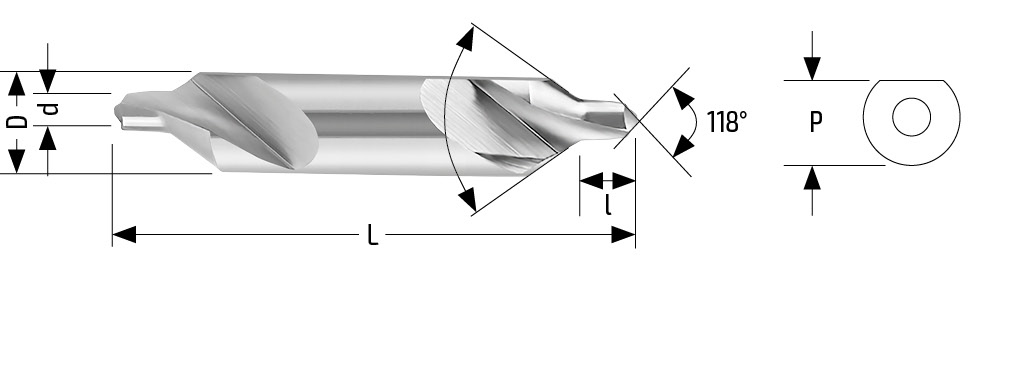

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D k12 | d | L | l | α | α | Z |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1,60 | 4,00 | 35 | 2,00 | 118 | 60 | 2 | Uncoated | PCC355160 | ||
| 2,00 | 5,00 | 40 | 2,50 | 118 | 60 | 2 | Uncoated | PCC355200 | ||
| 2,50 | 6,30 | 45 | 3,10 | 118 | 60 | 2 | Uncoated | PCC355250 | ||
| 3,15 | 8,00 | 50 | 3,90 | 118 | 60 | 2 | Uncoated | PCC355315 | ||
| 4,00 | 10,00 | 55 | 5,00 | 118 | 60 | 2 | Uncoated | PCC355400 | ||
| 5,00 | 12,50 | 63 | 6,30 | 118 | 60 | 2 | Uncoated | PCC355500 | ||
| 6,30 | 16,00 | 71 | 8,00 | 118 | 60 | 2 | Uncoated | PCC355630 | ||
| 1,60 | 4,00 | 35 | 2,00 | 118 | 60 | 2 | Alcrona | NIG355160 | ||
| 2,50 | 6,30 | 45 | 3,10 | 118 | 60 | 2 | Alcrona | NIG355250 | ||
| 3,15 | 8,00 | 50 | 3,90 | 118 | 60 | 2 | Alcrona | NIG355315 | ||
| 4,00 | 10,00 | 55 | 5,00 | 118 | 60 | 2 | Alcrona | NIG355400 | ||
| 5,00 | 12,50 | 63 | 6,30 | 118 | 60 | 2 | Alcrona | NIG355500 | ||
| 6,30 | 16,00 | 71 | 8,00 | 118 | 60 | 2 | Alcrona | NIG355630 |
