859S

4 flute end mill long version

Hs Un 859s
Series: Long

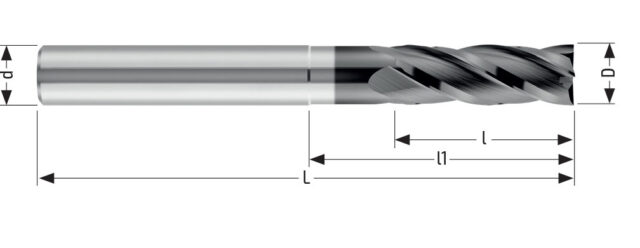

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
D h10 d h6 L l l1 a Z Shank ref. Coatings
(Balinit®)
Code Order
3,00 3,00 62 14,00 4 HA Alcrona 859S D. 3
4,00 4,00 62 16,00 4 HA Alcrona 859S D. 4
5,00 5,00 62 20,00 4 HA Alcrona 859S D. 5
6,00 6,00 78 20,00 30,0 0,15 4 HA Alcrona 859S D. 6
6,00 6,00 78 20,00 30,0 0,15 4 HB Alcrona 859SW D. 6
8,00 8,00 78 25,00 35,0 0,15 4 HA Alcrona 859S D. 8
8,00 8,00 78 25,00 35,0 0,15 4 HB Alcrona 859SW D. 8
10,00 10,00 105 28,00 48,0 0,15 4 HA Alcrona 859S D.10
10,00 10,00 105 28,00 48,0 0,15 4 HB Alcrona 859SW D.10
12,00 12,00 105 32,00 52,0 0,20 4 HA Alcrona 859S D.12
12,00 12,00 105 32,00 52,0 0,20 4 HB Alcrona 859SW D.12
16,00 16,00 130 40,00 60,0 0,20 4 HA Alcrona 859S D.16
16,00 16,00 130 40,00 60,0 0,20 4 HB Alcrona 859SW D.16
