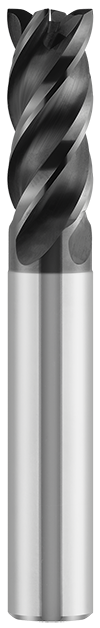

Utensile Silsaving HS_HP 893S - Vista verticale

893S

4 flute multi-purpose end mill with unequal flute spacing suitable for ramp milling

Items: 16 | Diameters: 8 | Coatings: 1 | Front types: 1

Utensile Silsaving HS_HP 893S - Vista orizzontale

893S

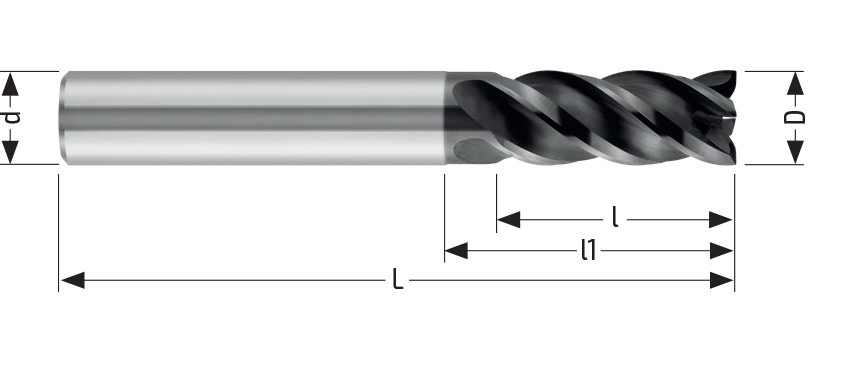

Utensile Silsaving HS_HP 893S - Vista con quotature

Diameter of cutting edge

Corner radius

Cutting length

Neck relief length

Overall length

Products :
Dh10 dh6 L l l1 a 45°'+0,05/+0 Z Shank ref. Coatings
(Balinit®) 		Code Order
4,00 6,00 57 11,00 15,0 0,15 0,20 4 HA HMG - Alcrona 893S D. 4
4,00 6,00 57 11,00 15,0 0,15 0,20 4 HB HMG - Alcrona 893SW D. 4
5,00 6,00 57 13,00 18,0 0,15 0,20 4 HA HMG - Alcrona 893S D. 5
5,00 6,00 57 13,00 18,0 0,15 0,20 4 HB HMG - Alcrona 893SW D. 5
6,00 6,00 57 13,00 20,0 0,15 0,25 4 HA HMG - Alcrona 893S D. 6
6,00 6,00 57 13,00 20,0 0,15 0,25 4 HB HMG - Alcrona 893SW D. 6
8,00 8,00 63 19,00 25,0 0,15 0,30 4 HA HMG - Alcrona 893S D. 8
8,00 8,00 63 19,00 25,0 0,15 0,30 4 HB HMG - Alcrona 893SW D. 8
10,00 10,00 72 22,00 30,0 0,15 0,35 4 HA HMG - Alcrona 893S D.10
10,00 10,00 72 22,00 30,0 0,15 0,35 4 HB HMG - Alcrona 893SW D.10
12,00 12,00 83 26,00 36,0 0,20 0,40 4 HA HMG - Alcrona 893S D.12
12,00 12,00 83 26,00 36,0 0,20 0,40 4 HB HMG - Alcrona 893SW D.12
16,00 16,00 92 32,00 42,0 0,20 0,45 4 HA HMG - Alcrona 893S D.16
16,00 16,00 92 32,00 42,0 0,20 0,45 4 HB HMG - Alcrona 893SW D.16
20,00 20,00 104 38,00 52,0 0,20 0,50 4 HA HMG - Alcrona 893S D.20
20,00 20,00 104 38,00 52,0 0,20 0,50 4 HB HMG - Alcrona 893SW D.20
