0044
4 flute end mill 4xD for trochoidal milling of hardened steel
0044

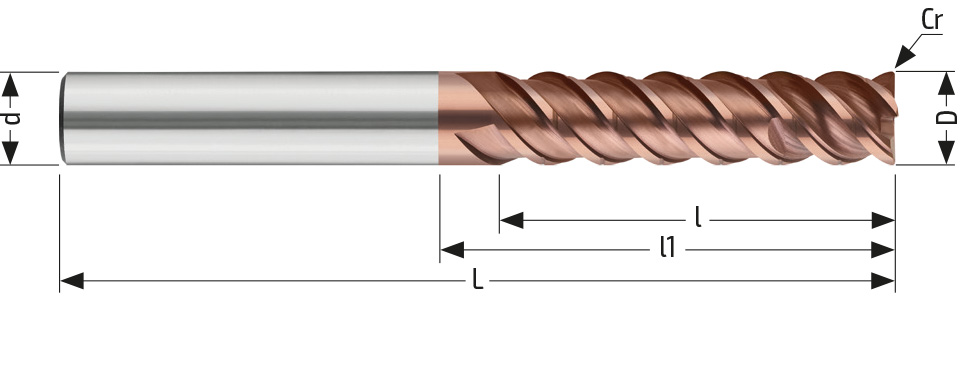

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Stock
Products :
| D h10 | Cr/r | l | l1 | a | L | d h5 | Z | Rif. gambo |
Coatings (Balinit®) |
Code | Stock | Order | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6,00 | 0,50 | 24,00 | 28,0 | 0,15 | 66 | 6,00 | 4 | HB | Tisaflex | F00440H00600001 | |||
| 8,00 | 0,50 | 32,00 | 36,0 | 0,15 | 74 | 8,00 | 4 | HB | Tisaflex | F00440H00800001 | |||
| 10,00 | 0,50 | 40,00 | 45,0 | 0,15 | 89 | 10,00 | 4 | HB | Tisaflex | F00440H01000001 | |||
| 12,00 | 0,50 | 48,00 | 54,0 | 0,20 | 105 | 12,00 | 4 | HB | Tisaflex | F00440H01200001 | |||
| 16,00 | 1,00 | 64,00 | 72,0 | 0,20 | 125 | 16,00 | 4 | HB | Tisaflex | F00440H01600001 | |||
| 20,00 | 1,00 | 80,00 | 90,0 | 0,20 | 145 | 20,00 | 4 | HB | Tisaflex | F00440H02000001 |
Brochure
Request information
If you have any doubts, need a guide in choosing or simply want to have more information about this tool, please contact us.
