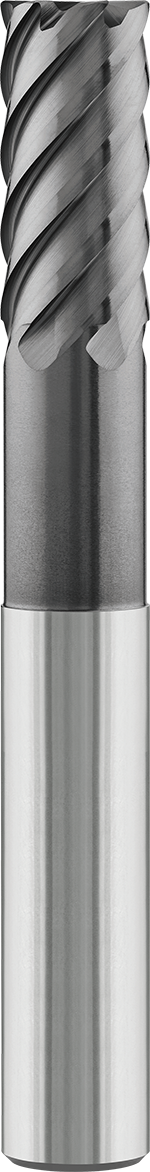

Utensile HM HPC 1154 - Vista verticale

1154

Multi-flute end mill for finishing with 4xD long neck

Items: 12 | Diameters: 6 | Coatings: 2 | Front types: 2

Utensile HM HPC 1154 - Vista orizzontale

1154

Utensile HM HPC 1154 - Vista con quotature

Diameter of cutting edge

Corner radius

Cutting length

Neck relief length

Overall length

Products :
D dh5 L l l1 a Cr/r Z Shank ref. Coatings
(Balinit®) 		Code Order
6,00 6,00 66 12,00 24,0 0,15 0,50 6 HA HMG - Alcrona F11540G00600002
8,00 8,00 74 16,00 32,0 0,15 0,50 6 HA HMG - Alcrona F11540G00800002
10,00 10,00 88 20,00 40,0 0,15 0,50 6 HA HMG - Alcrona F11540G01000002
12,00 12,00 105 24,00 48,0 0,20 0,50 6 HA HMG - Alcrona F11540G01200002
16,00 16,00 124 32,00 64,0 0,20 0,50 6 HA HMG - Alcrona F11540G01600002
20,00 20,00 148 40,00 80,0 0,20 0,50 6 HA HMG - Alcrona F11540G02000002
6,00 6,00 66 12,00 24,0 0,15 — 6 HA HMG - Alcrona F11540G00600001
8,00 8,00 74 16,00 32,0 0,15 — 6 HA HMG - Alcrona F11540G00800001
10,00 10,00 88 20,00 40,0 0,15 — 6 HA HMG - Alcrona F11540G01000001
12,00 12,00 105 24,00 48,0 0,20 — 6 HA HMG - Alcrona F11540G01200001
16,00 16,00 124 32,00 64,0 0,20 — 6 HA HMG - Alcrona F11540G01600001
20,00 20,00 148 40,00 80,0 0,20 — 6 HA HMG - Alcrona F11540G02000001
