403
Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :

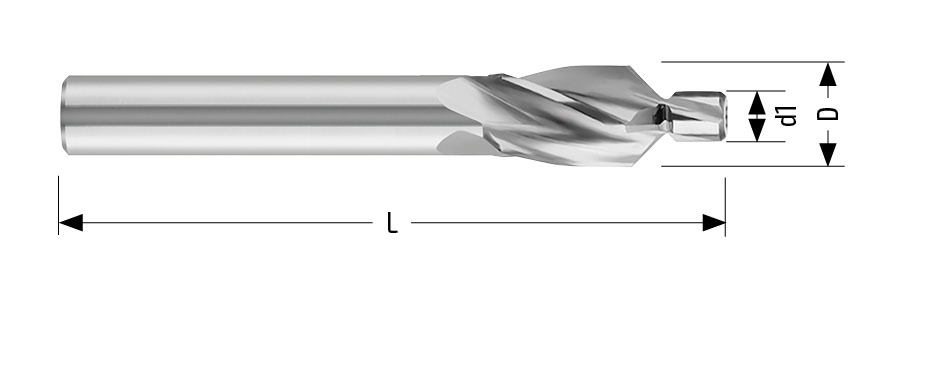

| dv | D z9 | d | L | l | α | d1 | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M3 | 6,00 | 6,00 | 71 | 18,20 | 90 | 3,2 | 4 | FORMA | Uncoated | FSB403003 | ||
| M4 | 8,00 | 8,00 | 71 | 19,30 | 90 | 4,3 | 4 | FORMA | Uncoated | FSB403004 | ||
| M5 | 10,00 | 10,00 | 80 | 24,50 | 90 | 5,3 | 4 | FORMA | Uncoated | FSB403005 | ||
| M6 | 12,60 | 10,00 | 80 | 26,00 | 90 | 6,4 | 4 | FORMA | Uncoated | FSB403006 | ||
| M8 | 15,00 | 12,00 | 100 | 32,30 | 90 | 8,4 | 4 | FORMA | Uncoated | FSB403008 | ||
| M10 | 19,00 | 12,00 | 100 | 34,50 | 90 | 10,5 | 4 | FORMA | Uncoated | FSB403010 |
