401
Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :

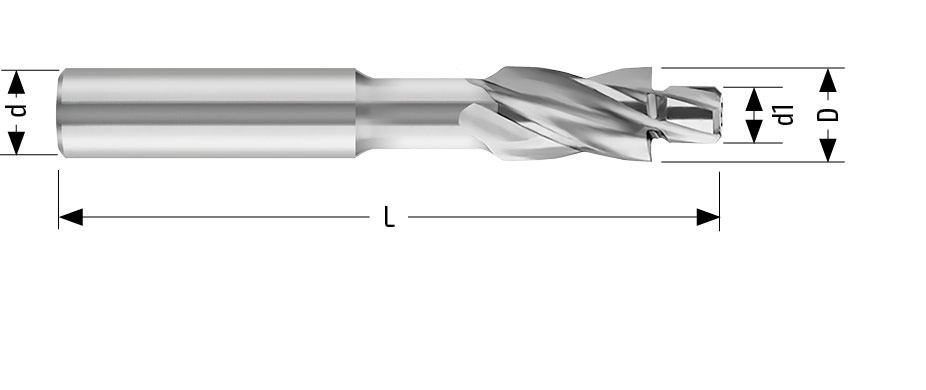

| dv | d1 | D z9 | L | l | d | Z | Rif. gambo |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M3 | 3,2 | 6,00 | 71 | 19,00 | 6,00 | 4 | FORMA | Uncoated | FSB401003 | ||
| M4 | 4,3 | 8,00 | 71 | 19,30 | 8,00 | 4 | FORMA | Uncoated | FSB401004 | ||
| M5 | 5,3 | 10,00 | 80 | 24,50 | 10,00 | 4 | FORMA | Uncoated | FSB401005 | ||
| M6 | 6,4 | 10,40 | 80 | 26,00 | 10,00 | 4 | FORMA | Uncoated | FSB401006 | ||
| M8 | 8,4 | 13,50 | 100 | 32,30 | 12,00 | 4 | FORMA | Uncoated | FSB401008 | ||
| M10 | 10,5 | 16,50 | 100 | 37,50 | 12,00 | 4 | FORMA | Uncoated | FSB401010 | ||
| M12 | 13,0 | 20,00 | 100 | 37,20 | 12,00 | 4 | FORMA | Uncoated | FSB401012 |
