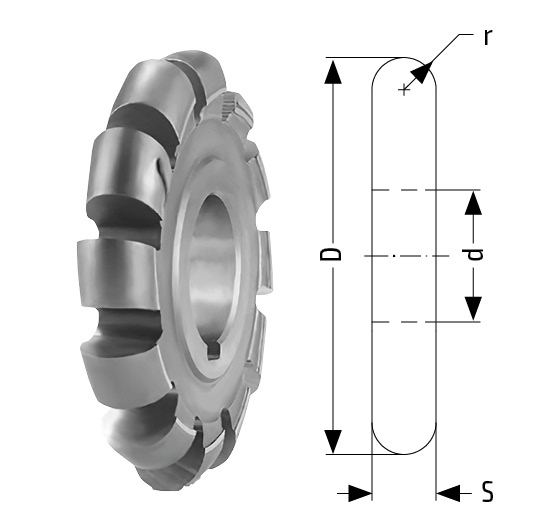

10E
Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D js16 | Cr/r | S - | d 0,00000 | Z |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|
| 50,00 | 2,00 | 4,0 | 16,0 | 14 | Uncoated | SIL10E502 | ||
| 63,00 | 3,00 | 6,0 | 22,0 | 12 | Uncoated | SIL10E603 | ||
| 63,00 | 4,00 | 8,0 | 22,0 | 12 | Uncoated | SIL10E604 | ||
| 63,00 | 5,00 | 10,0 | 22,0 | 12 | Uncoated | SIL10E605 | ||
| 63,00 | 2,50 | 5,0 | 22,0 | 12 | Uncoated | SIL10E625 | ||
| 63,00 | 3,50 | 7,0 | 22,0 | 12 | Uncoated | SIL10E635 | ||
| 63,00 | 4,50 | 9,0 | 22,0 | 12 | Uncoated | SIL10E645 | ||
| 80,00 | 6,00 | 12,0 | 27,0 | 12 | Uncoated | SIL10E806 | ||
| 80,00 | 7,00 | 14,0 | 27,0 | 12 | Uncoated | SIL10E807 | ||
| 80,00 | 8,00 | 16,0 | 27,0 | 12 | Uncoated | SIL10E808 | ||
| 80,00 | 5,50 | 11,0 | 27,0 | 12 | Uncoated | SIL10E855 | ||
| 80,00 | 6,50 | 13,0 | 27,0 | 12 | Uncoated | SIL10E865 | ||
| 80,00 | 7,50 | 15,0 | 27,0 | 12 | Uncoated | SIL10E875 | ||
| 100,00 | 9,00 | 18,0 | 32,0 | 12 | Uncoated | SIL10E109 | ||
| 100,00 | 10,00 | 20,0 | 32,0 | 12 | Uncoated | SIL10E110 | ||
| 100,00 | 8,50 | 17,0 | 32,0 | 12 | Uncoated | SIL10E185 | ||
| 100,00 | 9,50 | 19,0 | 32,0 | 12 | Uncoated | SIL10E195 |
