102

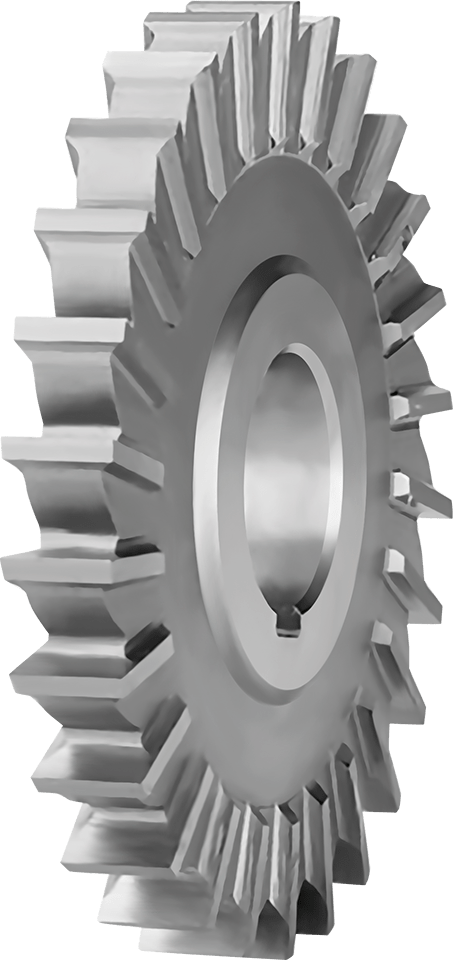

Side milling cutter with straight teeth
102
Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D js16 | d | S k11 | d 0,00000 | Z |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|
| 63,00 | 50,00 | 4,0 | 22,0 | 22 | Uncoated | SIL102204 | ||
| 63,00 | 50,00 | 5,0 | 22,0 | 22 | Uncoated | SIL102205 | ||
| 63,00 | 50,00 | 6,0 | 22,0 | 22 | Uncoated | SIL102206 | ||
| 63,00 | 50,00 | 8,0 | 22,0 | 22 | Uncoated | SIL102208 | ||
| 63,00 | 50,00 | 10,0 | 22,0 | 22 | Uncoated | SIL102210 | ||
| 63,00 | 50,00 | 12,0 | 22,0 | 20 | Uncoated | SIL102212 | ||
| 63,00 | 50,00 | 14,0 | 22,0 | 20 | Uncoated | SIL102214 | ||
| 80,00 | 50,00 | 6,0 | 27,0 | 24 | Uncoated | SIL102306 | ||
| 80,00 | 50,00 | 8,0 | 27,0 | 24 | Uncoated | SIL102308 | ||
| 80,00 | 50,00 | 10,0 | 27,0 | 24 | Uncoated | SIL102310 | ||
| 80,00 | 50,00 | 12,0 | 27,0 | 24 | Uncoated | SIL102312 | ||
| 80,00 | 50,00 | 14,0 | 27,0 | 20 | Uncoated | SIL102314 | ||
| 80,00 | 50,00 | 16,0 | 27,0 | 20 | Uncoated | SIL102316 | ||
| 100,00 | 50,00 | 6,0 | 27,0 | 26 | Uncoated | SIL102406 | ||
| 100,00 | 50,00 | 8,0 | 27,0 | 26 | Uncoated | SIL102408 | ||
| 100,00 | 50,00 | 10,0 | 27,0 | 26 | Uncoated | SIL102410 | ||
| 100,00 | 50,00 | 12,0 | 27,0 | 26 | Uncoated | SIL102412 | ||
| 100,00 | 50,00 | 14,0 | 27,0 | 22 | Uncoated | SIL102414 | ||
| 100,00 | 50,00 | 16,0 | 27,0 | 22 | Uncoated | SIL102416 | ||
| 125,00 | 50,00 | 10,0 | 32,0 | 30 | Uncoated | SIL102510 | ||
| 125,00 | 50,00 | 12,0 | 32,0 | 24 | Uncoated | SIL102512 | ||
| 125,00 | 50,00 | 14,0 | 32,0 | 24 | Uncoated | SIL102514 | ||
| 125,00 | 50,00 | 16,0 | 32,0 | 24 | Uncoated | SIL102516 | ||
| 125,00 | 50,00 | 18,0 | 32,0 | 24 | Uncoated | SIL102518 | ||
| 125,00 | 50,00 | 20,0 | 32,0 | 24 | Uncoated | SIL102520 |
