731
Finishing end mill short version
SIL
NIG
731

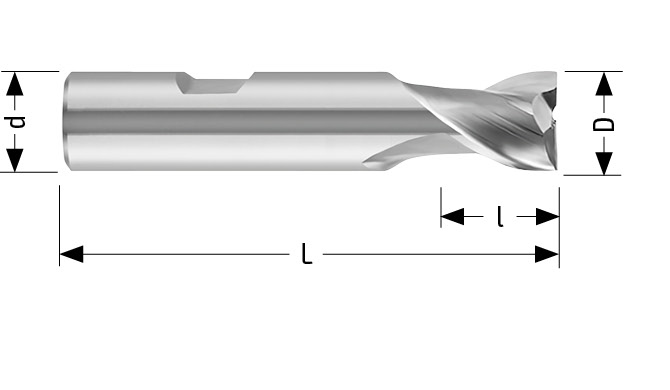

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D e8 | d | L | l | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|
| 1,50 | 6,00 | 49 | 4,00 | 2 | FORMB | Uncoated | VAN731015 | ||
| 2,00 | 6,00 | 49 | 4,00 | 2 | FORMB | Uncoated | VAN731020 | ||
| 2,50 | 6,00 | 49 | 5,00 | 2 | FORMB | Uncoated | VAN731025 | ||
| 3,00 | 6,00 | 49 | 5,00 | 2 | FORMB | Uncoated | VAN731030 | ||
| 3,50 | 6,00 | 51 | 7,00 | 2 | FORMB | Uncoated | VAN731035 | ||
| 4,00 | 6,00 | 51 | 7,00 | 2 | FORMB | Uncoated | VAN731040 | ||
| 4,50 | 6,00 | 51 | 7,00 | 2 | FORMB | Uncoated | VAN731045 | ||
| 5,00 | 6,00 | 52 | 8,00 | 2 | FORMB | Uncoated | VAN731050 | ||
| 5,50 | 6,00 | 52 | 8,00 | 2 | FORMB | Uncoated | VAN731055 | ||
| 6,00 | 6,00 | 52 | 8,00 | 2 | FORMB | Uncoated | VAN731060 | ||
| 6,50 | 10,00 | 60 | 10,00 | 2 | FORMB | Uncoated | VAN731065 | ||
| 7,00 | 10,00 | 60 | 10,00 | 2 | FORMB | Uncoated | VAN731070 | ||
| 7,50 | 10,00 | 61 | 11,00 | 2 | FORMB | Uncoated | VAN731075 | ||
| 8,00 | 10,00 | 61 | 11,00 | 2 | FORMB | Uncoated | VAN731080 | ||
| 8,50 | 10,00 | 61 | 11,00 | 2 | FORMB | Uncoated | VAN731085 | ||
| 9,00 | 10,00 | 61 | 11,00 | 2 | FORMB | Uncoated | VAN731090 | ||
| 9,50 | 10,00 | 63 | 13,00 | 2 | FORMB | Uncoated | VAN731095 | ||
| 10,00 | 10,00 | 63 | 13,00 | 2 | FORMB | Uncoated | VAN731100 | ||
| 10,50 | 12,00 | 70 | 13,00 | 2 | FORMB | Uncoated | VAN731105 | ||
| 11,00 | 12,00 | 70 | 13,00 | 2 | FORMB | Uncoated | VAN731110 | ||
| 11,50 | 12,00 | 73 | 16,00 | 2 | FORMB | Uncoated | VAN731115 | ||
| 12,00 | 12,00 | 73 | 16,00 | 2 | FORMB | Uncoated | VAN731120 | ||
| 12,50 | 12,00 | 73 | 16,00 | 2 | FORMB | Uncoated | VAN731125 | ||
| 13,00 | 12,00 | 73 | 16,00 | 2 | FORMB | Uncoated | VAN731130 | ||
| 13,50 | 12,00 | 73 | 16,00 | 2 | FORMB | Uncoated | VAN731135 | ||
| 14,00 | 12,00 | 73 | 16,00 | 2 | FORMB | Uncoated | VAN731140 | ||
| 14,50 | 12,00 | 73 | 16,00 | 2 | FORMB | Uncoated | VAN731145 | ||
| 15,00 | 12,00 | 73 | 16,00 | 2 | FORMB | Uncoated | VAN731150 | ||
| 16,00 | 16,00 | 79 | 19,00 | 2 | FORMB | Uncoated | VAN731160 | ||
| 17,00 | 16,00 | 79 | 19,00 | 2 | FORMB | Uncoated | VAN731170 | ||
| 18,00 | 16,00 | 79 | 19,00 | 2 | FORMB | Uncoated | VAN731180 | ||
| 19,00 | 16,00 | 79 | 19,00 | 2 | FORMB | Uncoated | VAN731190 | ||
| 20,00 | 20,00 | 88 | 22,00 | 2 | FORMB | Uncoated | VAN731200 | ||
| 22,00 | 20,00 | 88 | 22,00 | 2 | FORMB | Uncoated | VAN731220 | ||
| 25,00 | 25,00 | 102 | 26,00 | 2 | FORMB | Uncoated | VAN731250 | ||
| 28,00 | 25,00 | 102 | 26,00 | 2 | FORMB | Uncoated | VAN731280 | ||
| 30,00 | 25,00 | 102 | 26,00 | 2 | FORMB | Uncoated | VAN731300 | ||
| 32,00 | 32,00 | 112 | 32,00 | 2 | FORMB | Uncoated | VAN731320 | ||
| 36,00 | 32,00 | 112 | 32,00 | 2 | FORMB | Uncoated | VAN731360 | ||
| 40,00 | 40,00 | 130 | 38,00 | 2 | FORMB | Uncoated | VAN731400 | ||
| 1,50 | 6,00 | 49 | 4,00 | 2 | FORMB | Alcrona | NIG731015 | ||
| 2,00 | 6,00 | 49 | 4,00 | 2 | FORMB | Alcrona | NIG731020 | ||
| 2,50 | 6,00 | 49 | 5,00 | 2 | FORMB | Alcrona | NIG731025 | ||
| 3,00 | 6,00 | 49 | 5,00 | 2 | FORMB | Alcrona | NIG731030 | ||
| 3,50 | 6,00 | 51 | 7,00 | 2 | FORMB | Alcrona | NIG731035 | ||
| 4,00 | 6,00 | 51 | 7,00 | 2 | FORMB | Alcrona | NIG731040 | ||
| 4,50 | 6,00 | 51 | 7,00 | 2 | FORMB | Alcrona | NIG731045 | ||
| 5,00 | 6,00 | 52 | 8,00 | 2 | FORMB | Alcrona | NIG731050 | ||
| 5,50 | 6,00 | 52 | 8,00 | 2 | FORMB | Alcrona | NIG731055 | ||
| 6,00 | 6,00 | 52 | 8,00 | 2 | FORMB | Alcrona | NIG731060 |
