173
Finishing end mill regular version
SIL
NIG
173

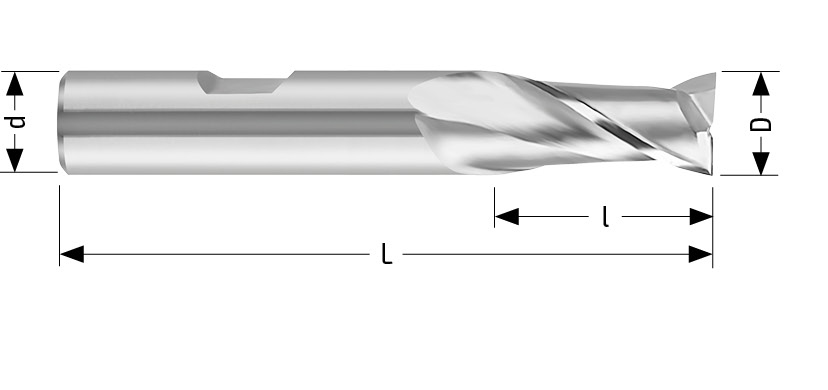

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D k10 | d | L | l | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|
| 4,00 | 6,00 | 55 | 11,00 | 2 | FORMB | Uncoated | SIL173004 | ||
| 5,00 | 6,00 | 57 | 13,00 | 2 | FORMB | Uncoated | SIL173005 | ||
| 6,00 | 6,00 | 57 | 13,00 | 2 | FORMB | Uncoated | SIL173006 | ||
| 7,00 | 10,00 | 66 | 16,00 | 2 | FORMB | Uncoated | SIL173007 | ||
| 8,00 | 10,00 | 69 | 19,00 | 2 | FORMB | Uncoated | SIL173008 | ||
| 9,00 | 10,00 | 69 | 19,00 | 2 | FORMB | Uncoated | SIL173009 | ||
| 10,00 | 10,00 | 72 | 22,00 | 2 | FORMB | Uncoated | SIL173010 | ||
| 11,00 | 12,00 | 79 | 22,00 | 2 | FORMB | Uncoated | SIL173011 | ||
| 12,00 | 12,00 | 83 | 26,00 | 2 | FORMB | Uncoated | SIL173012 | ||
| 13,00 | 12,00 | 83 | 26,00 | 2 | FORMB | Uncoated | SIL173013 | ||
| 14,00 | 12,00 | 83 | 26,00 | 2 | FORMB | Uncoated | SIL173014 | ||
| 15,00 | 12,00 | 83 | 26,00 | 2 | FORMB | Uncoated | SIL173015 | ||
| 16,00 | 16,00 | 92 | 32,00 | 2 | FORMB | Uncoated | SIL173016 | ||
| 17,00 | 16,00 | 92 | 32,00 | 2 | FORMB | Uncoated | SIL173017 | ||
| 18,00 | 16,00 | 92 | 32,00 | 2 | FORMB | Uncoated | SIL173018 | ||
| 19,00 | 16,00 | 92 | 32,00 | 2 | FORMB | Uncoated | SIL173019 | ||
| 20,00 | 20,00 | 104 | 38,00 | 2 | FORMB | Uncoated | SIL173020 | ||
| 25,00 | 25,00 | 121 | 45,00 | 2 | FORMB | Uncoated | SIL173025 | ||
| 4,00 | 6,00 | 55 | 11,00 | 2 | FORMB | Alcrona | NIG173004 | ||
| 5,00 | 6,00 | 57 | 13,00 | 2 | FORMB | Alcrona | NIG173005 | ||
| 6,00 | 6,00 | 57 | 13,00 | 2 | FORMB | Alcrona | NIG173006 | ||
| 7,00 | 10,00 | 66 | 16,00 | 2 | FORMB | Alcrona | NIG173007 | ||
| 8,00 | 10,00 | 69 | 19,00 | 2 | FORMB | Alcrona | NIG173008 | ||
| 9,00 | 10,00 | 69 | 19,00 | 2 | FORMB | Alcrona | NIG173009 | ||
| 10,00 | 10,00 | 72 | 22,00 | 2 | FORMB | Alcrona | NIG173010 | ||
| 11,00 | 12,00 | 79 | 22,00 | 2 | FORMB | Alcrona | NIG173011 | ||
| 12,00 | 12,00 | 83 | 26,00 | 2 | FORMB | Alcrona | NIG173012 | ||
| 13,00 | 12,00 | 83 | 26,00 | 2 | FORMB | Alcrona | NIG173013 | ||
| 14,00 | 12,00 | 83 | 26,00 | 2 | FORMB | Alcrona | NIG173014 | ||
| 15,00 | 12,00 | 83 | 26,00 | 2 | FORMB | Alcrona | NIG173015 | ||
| 16,00 | 16,00 | 92 | 32,00 | 2 | FORMB | Alcrona | NIG173016 | ||
| 17,00 | 16,00 | 92 | 32,00 | 2 | FORMB | Alcrona | NIG173017 | ||
| 18,00 | 16,00 | 92 | 32,00 | 2 | FORMB | Alcrona | NIG173018 | ||
| 19,00 | 16,00 | 92 | 32,00 | 2 | FORMB | Alcrona | NIG173019 | ||
| 20,00 | 20,00 | 104 | 38,00 | 2 | FORMB | Alcrona | NIG173020 | ||
| 25,00 | 25,00 | 121 | 45,00 | 2 | FORMB | Alcrona | NIG173025 |
