160
Finishing end mill, long version
SIL
NIG
160

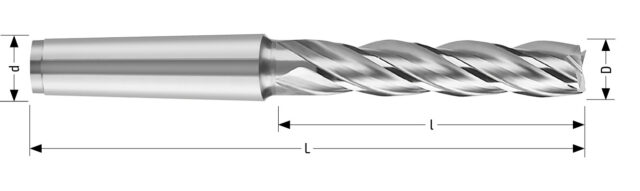

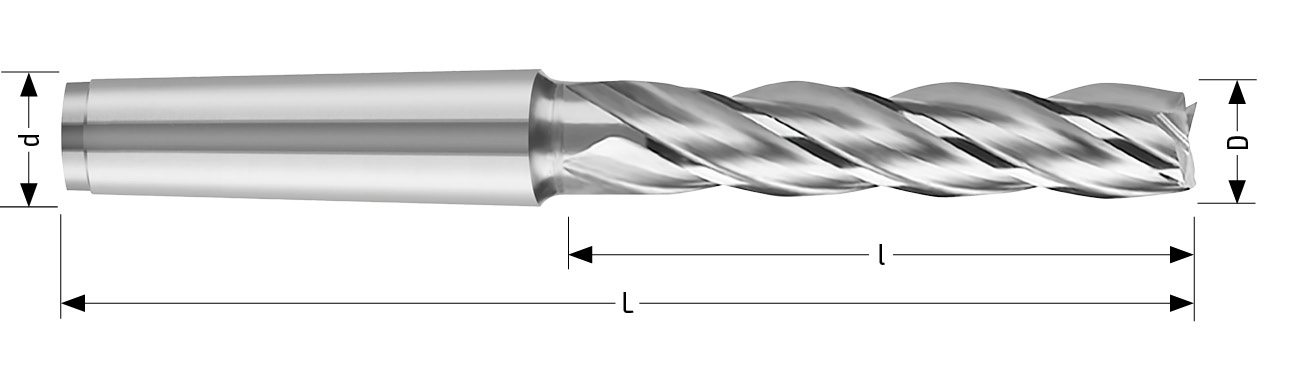

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D k10 | d | L | l | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|
| 16,00 | 17,78 | 148 | 63,00 | 4 | FORMC | Uncoated | SIL160016 | ||
| 18,00 | 17,78 | 148 | 63,00 | 5 | FORMC | Uncoated | SIL160018 | ||
| 20,00 | 23,83 | 177 | 75,00 | 5 | FORMC | Uncoated | SIL160020 | ||
| 22,00 | 23,83 | 177 | 75,00 | 5 | FORMC | Uncoated | SIL160022 | ||
| 25,00 | 23,83 | 192 | 90,00 | 6 | FORMC | Uncoated | SIL160025 | ||
| 28,00 | 23,83 | 192 | 90,00 | 6 | FORMC | Uncoated | SIL160028 | ||
| 30,00 | 23,83 | 192 | 90,00 | 6 | FORMC | Uncoated | SIL160030 | ||
| 32,00 | 31,27 | 231 | 106,00 | 6 | FORMC | Uncoated | SIL160032 | ||
| 36,00 | 31,27 | 231 | 106,00 | 6 | FORMC | Uncoated | SIL160036 | ||
| 40,00 | 31,27 | 250 | 125,00 | 6 | FORMC | Uncoated | SIL160040 | ||
| 40,00 | 31,27 | 273 | 125,00 | 8 | FORMC | Uncoated | SIL160140 | ||
| 50,00 | 44,40 | 308 | 150,00 | 8 | FORMC | Uncoated | SIL160050 | ||
| 50,00 | 44,40 | 336 | 150,00 | 8 | FORMC | Uncoated | SIL160150 | ||
| 16,00 | 17,78 | 148 | 63,00 | 4 | FORMC | Alcrona | NIG160016 | ||
| 18,00 | 17,78 | 148 | 63,00 | 5 | FORMC | Alcrona | NIG160018 | ||
| 20,00 | 23,83 | 177 | 75,00 | 5 | FORMC | Alcrona | NIG160020 | ||
| 22,00 | 23,83 | 177 | 75,00 | 5 | FORMC | Alcrona | NIG160022 | ||
| 25,00 | 23,83 | 192 | 90,00 | 6 | FORMC | Alcrona | NIG160025 | ||
| 28,00 | 23,83 | 192 | 90,00 | 6 | FORMC | Alcrona | NIG160028 | ||
| 30,00 | 23,83 | 192 | 90,00 | 6 | FORMC | Alcrona | NIG160030 | ||
| 32,00 | 31,27 | 231 | 106,00 | 6 | FORMC | Alcrona | NIG160032 | ||
| 36,00 | 31,27 | 231 | 106,00 | 6 | FORMC | Alcrona | NIG160036 | ||
| 40,00 | 31,27 | 250 | 125,00 | 6 | FORMC | Alcrona | NIG160040 | ||
| 50,00 | 44,40 | 308 | 150,00 | 8 | FORMC | Alcrona | NIG160050 |
