148
Finishing end mill, extra-long version
148

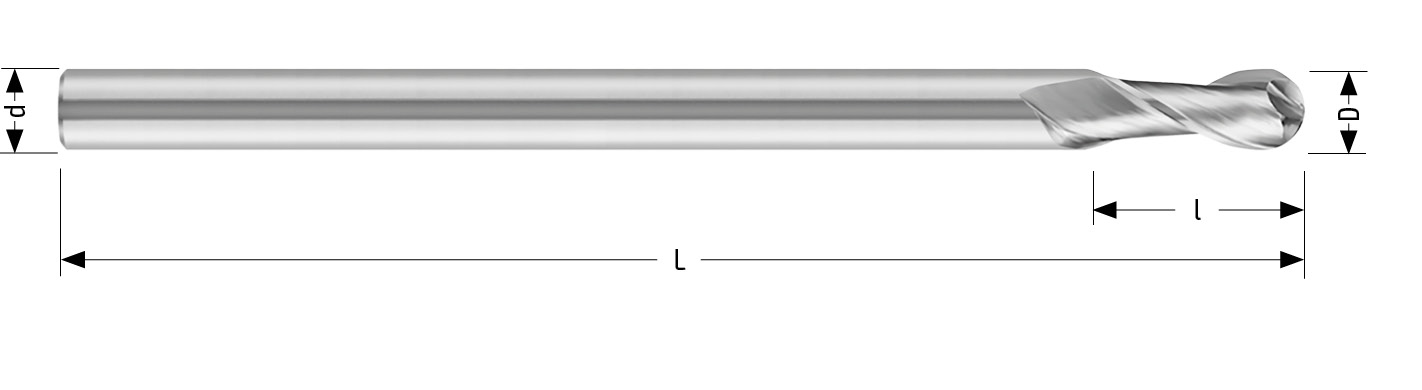

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D k10 | d | L | l | Cr/r | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|---|
| 6,00 | 6,00 | 180 | 25,00 | 3,00 | 2 | FORMA | Uncoated | SIL148006 | ||
| 8,00 | 8,00 | 180 | 25,00 | 4,00 | 2 | FORMA | Uncoated | SIL148008 | ||
| 10,00 | 10,00 | 200 | 30,00 | 5,00 | 2 | FORMA | Uncoated | SIL148010 | ||
| 12,00 | 12,00 | 200 | 30,00 | 6,00 | 2 | FORMA | Uncoated | SIL148012 | ||
| 14,00 | 14,00 | 200 | 35,00 | 7,00 | 2 | FORMA | Uncoated | SIL148014 | ||
| 16,00 | 16,00 | 200 | 35,00 | 8,00 | 2 | FORMA | Uncoated | SIL148016 | ||
| 20,00 | 20,00 | 200 | 35,00 | 10,00 | 2 | FORMA | Uncoated | SIL148020 |
