113
Finishing end mill regular version
SIL
NIG
113

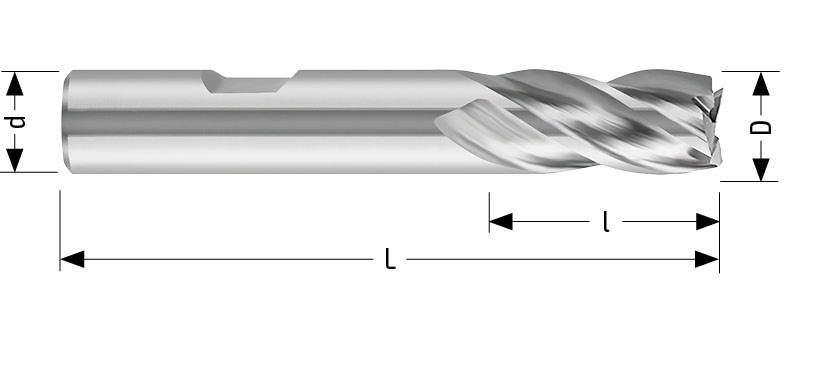

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D k10 | d | L | l | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|
| 1,50 | 6,00 | 49 | 4,00 | 4 | FORMB | Uncoated | SIL1130015 | ||
| 2,00 | 6,00 | 52 | 7,00 | 4 | FORMB | Uncoated | SIL1130020 | ||
| 2,50 | 6,00 | 52 | 8,00 | 4 | FORMB | Uncoated | SIL1130025 | ||
| 3,00 | 6,00 | 52 | 8,00 | 4 | FORMB | Uncoated | SIL1130030 | ||
| 3,50 | 6,00 | 54 | 10,00 | 4 | FORMB | Uncoated | SIL1130035 | ||
| 4,00 | 6,00 | 55 | 11,00 | 4 | FORMB | Uncoated | SIL1130040 | ||
| 4,50 | 6,00 | 55 | 11,00 | 4 | FORMB | Uncoated | SIL1130045 | ||
| 5,00 | 6,00 | 57 | 13,00 | 4 | FORMB | Uncoated | SIL1130050 | ||
| 5,50 | 6,00 | 57 | 13,00 | 4 | FORMB | Uncoated | SIL1130055 | ||
| 6,00 | 6,00 | 57 | 13,00 | 4 | FORMB | Uncoated | SIL113006 | ||
| 7,00 | 10,00 | 66 | 16,00 | 4 | FORMB | Uncoated | SIL113007 | ||
| 8,00 | 10,00 | 69 | 19,00 | 4 | FORMB | Uncoated | SIL113008 | ||
| 9,00 | 10,00 | 69 | 19,00 | 4 | FORMB | Uncoated | SIL113009 | ||
| 10,00 | 10,00 | 72 | 22,00 | 4 | FORMB | Uncoated | SIL113010 | ||
| 11,00 | 12,00 | 79 | 22,00 | 4 | FORMB | Uncoated | SIL113011 | ||
| 12,00 | 12,00 | 83 | 26,00 | 4 | FORMB | Uncoated | SIL113012 | ||
| 13,00 | 12,00 | 83 | 26,00 | 4 | FORMB | Uncoated | SIL113013 | ||
| 14,00 | 12,00 | 83 | 26,00 | 4 | FORMB | Uncoated | SIL113014 | ||
| 15,00 | 12,00 | 83 | 26,00 | 4 | FORMB | Uncoated | SIL113015 | ||
| 16,00 | 16,00 | 92 | 32,00 | 4 | FORMB | Uncoated | SIL113016 | ||
| 17,00 | 16,00 | 92 | 32,00 | 4 | FORMB | Uncoated | SIL113017 | ||
| 18,00 | 16,00 | 92 | 32,00 | 4 | FORMB | Uncoated | SIL113018 | ||
| 19,00 | 16,00 | 92 | 32,00 | 4 | FORMB | Uncoated | SIL113019 | ||
| 20,00 | 20,00 | 104 | 38,00 | 4 | FORMB | Uncoated | SIL113020 | ||
| 22,00 | 20,00 | 104 | 38,00 | 4 | FORMB | Uncoated | SIL113022 | ||
| 24,00 | 25,00 | 121 | 45,00 | 4 | FORMB | Uncoated | SIL113024 | ||
| 25,00 | 25,00 | 121 | 45,00 | 4 | FORMB | Uncoated | SIL113025 | ||
| 26,00 | 25,00 | 121 | 45,00 | 4 | FORMB | Uncoated | SIL113026 | ||
| 28,00 | 25,00 | 121 | 45,00 | 6 | FORMB | Uncoated | SIL113028 | ||
| 30,00 | 25,00 | 121 | 45,00 | 6 | FORMB | Uncoated | SIL113030 | ||
| 32,00 | 32,00 | 133 | 53,00 | 6 | FORMB | Uncoated | SIL113032 | ||
| 36,00 | 32,00 | 133 | 53,00 | 6 | FORMB | Uncoated | SIL113036 | ||
| 40,00 | 40,00 | 155 | 63,00 | 6 | FORMB | Uncoated | SIL113040 | ||
| 50,00 | 50,00 | 177 | 75,00 | 6 | FORMB | Uncoated | SIL113050 | ||
| 1,50 | 6,00 | 49 | 4,00 | 4 | FORMB | Alcrona | NIG1130015 | ||
| 2,00 | 6,00 | 52 | 7,00 | 4 | FORMB | Alcrona | NIG1130020 | ||
| 2,50 | 6,00 | 52 | 8,00 | 4 | FORMB | Alcrona | NIG1130025 | ||
| 3,00 | 6,00 | 52 | 8,00 | 4 | FORMB | Alcrona | NIG1130030 | ||
| 3,50 | 6,00 | 54 | 10,00 | 4 | FORMB | Alcrona | NIG1130035 | ||
| 4,00 | 6,00 | 55 | 11,00 | 4 | FORMB | Alcrona | NIG1130040 | ||
| 4,50 | 6,00 | 55 | 11,00 | 4 | FORMB | Alcrona | NIG1130045 | ||
| 5,00 | 6,00 | 57 | 13,00 | 4 | FORMB | Alcrona | NIG1130050 | ||
| 5,50 | 6,00 | 57 | 13,00 | 4 | FORMB | Alcrona | NIG1130055 | ||
| 6,00 | 6,00 | 57 | 13,00 | 4 | FORMB | Alcrona | NIG113006 | ||
| 7,00 | 10,00 | 66 | 16,00 | 4 | FORMB | Alcrona | NIG113007 | ||
| 8,00 | 10,00 | 69 | 19,00 | 4 | FORMB | Alcrona | NIG113008 | ||
| 9,00 | 10,00 | 69 | 19,00 | 4 | FORMB | Alcrona | NIG113009 | ||
| 10,00 | 10,00 | 72 | 22,00 | 4 | FORMB | Alcrona | NIG113010 | ||
| 11,00 | 12,00 | 79 | 22,00 | 4 | FORMB | Alcrona | NIG113011 | ||
| 12,00 | 12,00 | 83 | 26,00 | 4 | FORMB | Alcrona | NIG113012 |
