108
Finishing end mill short version
SIL
NIG
108

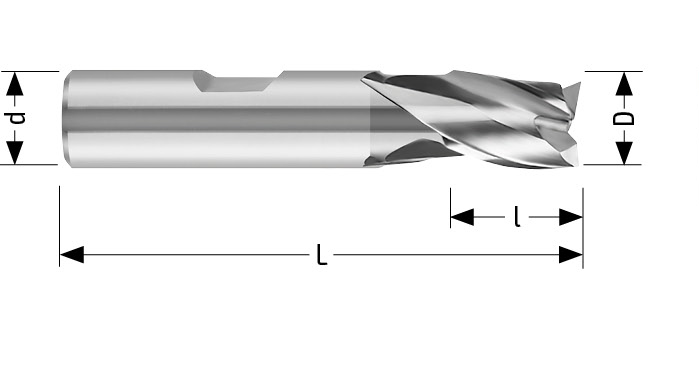

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D e8 | d | L | l | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|
| 1,00 | 6,00 | 49 | 4,00 | 3 | FORMB | Uncoated | SIL108010 | ||
| 1,50 | 6,00 | 49 | 4,00 | 3 | FORMB | Uncoated | SIL108015 | ||
| 2,00 | 6,00 | 49 | 4,00 | 3 | FORMB | Uncoated | SIL108020 | ||
| 2,50 | 6,00 | 49 | 5,00 | 3 | FORMB | Uncoated | SIL108025 | ||
| 3,00 | 6,00 | 49 | 5,00 | 3 | FORMB | Uncoated | SIL108030 | ||
| 3,50 | 6,00 | 51 | 7,00 | 3 | FORMB | Uncoated | SIL108035 | ||
| 3,80 | 6,00 | 51 | 7,00 | 3 | FORMB | Uncoated | SIL108038 | ||
| 4,00 | 6,00 | 51 | 7,00 | 3 | FORMB | Uncoated | SIL108040 | ||
| 4,50 | 6,00 | 51 | 7,00 | 3 | FORMB | Uncoated | SIL108045 | ||
| 4,80 | 6,00 | 52 | 8,00 | 3 | FORMB | Uncoated | SIL108048 | ||
| 5,00 | 6,00 | 52 | 8,00 | 3 | FORMB | Uncoated | SIL108050 | ||
| 5,50 | 6,00 | 52 | 8,00 | 3 | FORMB | Uncoated | SIL108055 | ||
| 6,00 | 6,00 | 52 | 8,00 | 3 | FORMB | Uncoated | SIL108060 | ||
| 6,50 | 10,00 | 60 | 10,00 | 3 | FORMB | Uncoated | SIL108065 | ||
| 7,00 | 10,00 | 60 | 10,00 | 3 | FORMB | Uncoated | SIL108070 | ||
| 7,50 | 10,00 | 61 | 11,00 | 3 | FORMB | Uncoated | SIL108075 | ||
| 8,00 | 10,00 | 61 | 11,00 | 3 | FORMB | Uncoated | SIL108080 | ||
| 8,50 | 10,00 | 61 | 11,00 | 3 | FORMB | Uncoated | SIL108085 | ||
| 9,00 | 10,00 | 61 | 11,00 | 3 | FORMB | Uncoated | SIL108090 | ||
| 9,50 | 10,00 | 63 | 13,00 | 3 | FORMB | Uncoated | SIL108095 | ||
| 10,00 | 10,00 | 63 | 13,00 | 3 | FORMB | Uncoated | SIL108100 | ||
| 11,00 | 12,00 | 70 | 13,00 | 3 | FORMB | Uncoated | SIL108110 | ||
| 12,00 | 12,00 | 73 | 16,00 | 3 | FORMB | Uncoated | SIL108120 | ||
| 13,00 | 12,00 | 73 | 16,00 | 3 | FORMB | Uncoated | SIL108130 | ||
| 14,00 | 12,00 | 73 | 16,00 | 3 | FORMB | Uncoated | SIL108140 | ||
| 15,00 | 12,00 | 73 | 16,00 | 3 | FORMB | Uncoated | SIL108150 | ||
| 16,00 | 16,00 | 79 | 19,00 | 3 | FORMB | Uncoated | SIL108160 | ||
| 17,00 | 16,00 | 79 | 19,00 | 3 | FORMB | Uncoated | SIL108170 | ||
| 18,00 | 16,00 | 79 | 19,00 | 3 | FORMB | Uncoated | SIL108180 | ||
| 19,00 | 16,00 | 79 | 19,00 | 3 | FORMB | Uncoated | SIL108190 | ||
| 20,00 | 20,00 | 88 | 22,00 | 3 | FORMB | Uncoated | SIL108200 | ||
| 1,00 | 6,00 | 49 | 4,00 | 3 | FORMB | Alcrona | NIG108010 | ||
| 1,50 | 6,00 | 49 | 4,00 | 3 | FORMB | Alcrona | NIG108015 | ||
| 2,00 | 6,00 | 49 | 4,00 | 3 | FORMB | Alcrona | NIG108020 | ||
| 2,50 | 6,00 | 49 | 5,00 | 3 | FORMB | Alcrona | NIG108025 | ||
| 3,00 | 6,00 | 49 | 5,00 | 3 | FORMB | Alcrona | NIG108030 | ||
| 3,50 | 6,00 | 51 | 7,00 | 3 | FORMB | Alcrona | NIG108035 | ||
| 3,80 | 6,00 | 51 | 7,00 | 3 | FORMB | Alcrona | NIG108038 | ||
| 4,00 | 6,00 | 51 | 7,00 | 3 | FORMB | Alcrona | NIG108040 | ||
| 4,50 | 6,00 | 51 | 7,00 | 3 | FORMB | Alcrona | NIG108045 | ||
| 4,80 | 6,00 | 52 | 8,00 | 3 | FORMB | Alcrona | NIG108048 | ||
| 5,00 | 6,00 | 52 | 8,00 | 3 | FORMB | Alcrona | NIG108050 | ||
| 5,50 | 6,00 | 52 | 8,00 | 3 | FORMB | Alcrona | NIG108055 | ||
| 6,00 | 6,00 | 52 | 8,00 | 3 | FORMB | Alcrona | NIG108060 | ||
| 6,50 | 10,00 | 60 | 10,00 | 3 | FORMB | Alcrona | NIG108065 | ||
| 7,00 | 10,00 | 60 | 10,00 | 3 | FORMB | Alcrona | NIG108070 | ||
| 7,50 | 10,00 | 61 | 11,00 | 3 | FORMB | Alcrona | NIG108075 | ||
| 8,00 | 10,00 | 61 | 11,00 | 3 | FORMB | Alcrona | NIG108080 | ||
| 8,50 | 10,00 | 61 | 11,00 | 3 | FORMB | Alcrona | NIG108085 | ||
| 9,00 | 10,00 | 61 | 11,00 | 3 | FORMB | Alcrona | NIG108090 |
