Utensile HM CMP 780 - Vista verticale

780

Front geometry drill

Items: 19 | Diameters: 19 | Coatings: 1 | Front types: 1

Utensile HM CMP 780 - Vista orizzontale

780

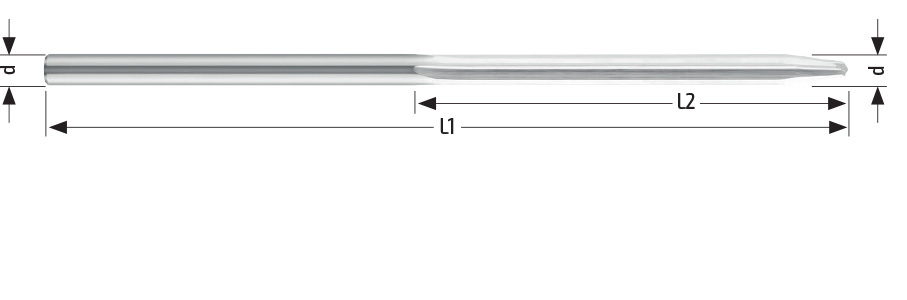

Utensile HM CMP 780 - Vista con quotature

Diameter of cutting edge

Corner radius

Cutting length

Neck relief length

Overall length

Products :
Dh6 dh6 L l Z Shank ref. Coatings
(Balinit®) 		Code Order
2,00 2,00 100 50,00 4 HA HM0 - Uncoated HM0780020
2,48 2,48 100 50,00 4 HA HM0 - Uncoated HM0780024
3,00 3,00 100 50,00 4 HA HM0 - Uncoated HM0780030
3,17 3,17 100 50,00 4 HA HM0 - Uncoated HM0780031
4,00 4,00 100 50,00 4 HA HM0 - Uncoated HM0780040
4,21 4,21 100 50,00 4 HA HM0 - Uncoated HM0780042
4,82 4,82 100 50,00 4 HA HM0 - Uncoated HM0780048
5,05 5,05 100 50,00 4 HA HM0 - Uncoated HM0780050
5,53 5,53 100 50,00 4 HA HM0 - Uncoated HM0780055
6,00 6,00 100 50,00 4 HA HM0 - Uncoated HM0780060
6,35 6,35 100 50,00 4 HA HM0 - Uncoated HM0780063
6,60 6,60 100 50,00 4 HA HM0 - Uncoated HM0780066
7,00 7,00 100 50,00 4 HA HM0 - Uncoated HM0780070
7,92 7,92 100 50,00 4 HA HM0 - Uncoated HM0780079
8,00 8,00 100 50,00 4 HA HM0 - Uncoated HM0780080
8,63 8,63 100 50,00 4 HA HM0 - Uncoated HM0780086
9,00 9,00 100 50,00 4 HA HM0 - Uncoated HM0780090
10,00 10,00 100 50,00 4 HA HM0 - Uncoated HM0780100
12,00 12,00 100 50,00 4 HA HM0 - Uncoated HM0780120
