770
End mill with combined cutting edge geometry
770

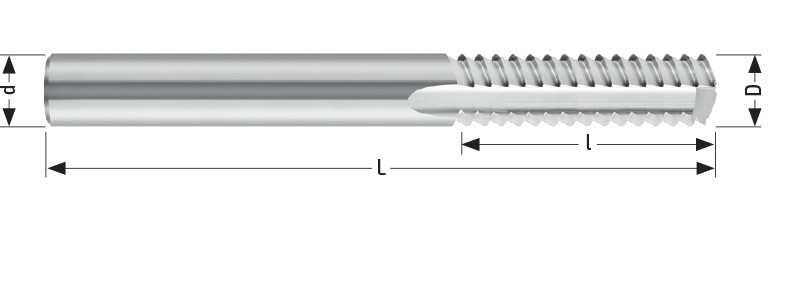

Diameter of cutting edge
Corner Radius
Cutting length
Neck Relief Length
Overall Length
Products :
| D h10 | d h6 | L | l | Z | Shank ref. |
Coatings (Balinit®) |
Code | Order | |
|---|---|---|---|---|---|---|---|---|---|
| 4,76 | 4,76 | 75 | 25,00 | 2 | HA | Uncoated | HM0770047 | ||
| 5,00 | 5,00 | 75 | 25,00 | 2 | HA | Uncoated | HM0770050 | ||
| 6,00 | 6,00 | 75 | 30,00 | 2 | HA | Uncoated | HM0770060 | ||
| 6,35 | 7,00 | 75 | 30,00 | 2 | HA | Uncoated | HM0770063 | ||
| 8,00 | 8,00 | 75 | 30,00 | 2 | HA | Uncoated | HM0770080 | ||
| 9,53 | 10,00 | 75 | 30,00 | 2 | HA | Uncoated | HM0770095 | ||
| 10,00 | 10,00 | 75 | 30,00 | 2 | HA | Uncoated | HM0770100 | ||
| 12,00 | 12,00 | 75 | 30,00 | 2 | HA | Uncoated | HM0770120 | ||
| 12,70 | 13,00 | 75 | 30,00 | 2 | HA | Uncoated | HM0770127 |
