3051N
Diametro tagliente
Corner radius
Lunghezza tagliente
Lunghezza ribassamento
Lunghezza totale
Prodotti :

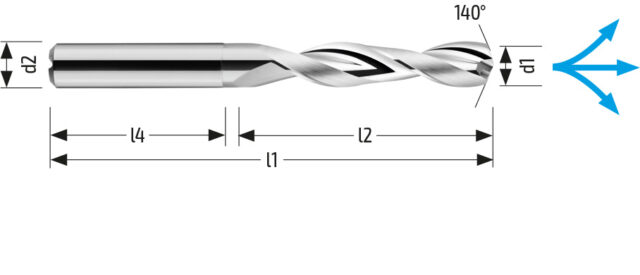

| d1 m7 | d2 h6 | lu | l2 | l4 | l1 |
Rivestimenti (Balinit®) |
Codice | Ordina | |
|---|---|---|---|---|---|---|---|---|---|
| 3,00 | 6,00 | 23,00 | 28,0 | 36,0 | 66 | Non Riv. | HM03051N030 | ||
| 3,20 | 6,00 | 23,00 | 28,0 | 36,0 | 66 | Non Riv. | HM03051N032 | ||
| 3,30 | 6,00 | 23,00 | 28,0 | 36,0 | 66 | Non Riv. | HM03051N033 | ||
| 3,50 | 6,00 | 23,00 | 28,0 | 36,0 | 66 | Non Riv. | HM03051N035 | ||
| 3,70 | 6,00 | 23,00 | 28,0 | 36,0 | 66 | Non Riv. | HM03051N037 | ||
| 3,90 | 6,00 | 29,00 | 36,0 | 36,0 | 74 | Non Riv. | HM03051N039 | ||
| 4,00 | 6,00 | 29,00 | 36,0 | 36,0 | 74 | Non Riv. | HM03051N040 | ||
| 4,10 | 6,00 | 29,00 | 36,0 | 36,0 | 74 | Non Riv. | HM03051N041 | ||
| 4,20 | 6,00 | 29,00 | 36,0 | 36,0 | 74 | Non Riv. | HM03051N042 | ||
| 4,30 | 6,00 | 29,00 | 36,0 | 36,0 | 74 | Non Riv. | HM03051N043 | ||
| 4,50 | 6,00 | 29,00 | 36,0 | 36,0 | 74 | Non Riv. | HM03051N045 | ||
| 4,60 | 6,00 | 29,00 | 36,0 | 36,0 | 74 | Non Riv. | HM03051N046 | ||
| 4,70 | 6,00 | 29,00 | 36,0 | 36,0 | 74 | Non Riv. | HM03051N047 | ||
| 5,00 | 6,00 | 35,00 | 44,0 | 36,0 | 82 | Non Riv. | HM03051N050 | ||
| 5,10 | 6,00 | 35,00 | 44,0 | 36,0 | 82 | Non Riv. | HM03051N051 | ||
| 5,20 | 6,00 | 35,00 | 44,0 | 36,0 | 82 | Non Riv. | HM03051N052 | ||
| 5,50 | 6,00 | 35,00 | 44,0 | 36,0 | 82 | Non Riv. | HM03051N055 | ||
| 5,60 | 6,00 | 35,00 | 44,0 | 36,0 | 82 | Non Riv. | HM03051N056 | ||
| 6,00 | 6,00 | 35,00 | 44,0 | 36,0 | 82 | Non Riv. | HM03051N060 | ||
| 6,10 | 8,00 | 43,00 | 53,0 | 36,0 | 91 | Non Riv. | HM03051N061 | ||
| 6,20 | 8,00 | 43,00 | 53,0 | 36,0 | 91 | Non Riv. | HM03051N062 | ||
| 6,30 | 8,00 | 43,00 | 53,0 | 36,0 | 91 | Non Riv. | HM03051N063 | ||
| 6,40 | 8,00 | 43,00 | 53,0 | 36,0 | 91 | Non Riv. | HM03051N064 | ||
| 6,50 | 8,00 | 43,00 | 53,0 | 36,0 | 91 | Non Riv. | HM03051N065 | ||
| 6,60 | 8,00 | 43,00 | 53,0 | 36,0 | 91 | Non Riv. | HM03051N066 | ||
| 6,80 | 8,00 | 43,00 | 53,0 | 36,0 | 91 | Non Riv. | HM03051N068 | ||
| 7,00 | 8,00 | 43,00 | 53,0 | 36,0 | 91 | Non Riv. | HM03051N070 | ||
| 7,40 | 8,00 | 43,00 | 53,0 | 36,0 | 91 | Non Riv. | HM03051N074 | ||
| 7,50 | 8,00 | 43,00 | 53,0 | 36,0 | 91 | Non Riv. | HM03051N075 | ||
| 7,60 | 8,00 | 43,00 | 53,0 | 36,0 | 91 | Non Riv. | HM03051N076 | ||
| 8,00 | 8,00 | 43,00 | 53,0 | 36,0 | 91 | Non Riv. | HM03051N080 | ||
| 8,40 | 10,00 | 49,00 | 61,0 | 40,0 | 103 | Non Riv. | HM03051N084 | ||
| 8,50 | 10,00 | 49,00 | 61,0 | 40,0 | 103 | Non Riv. | HM03051N085 | ||
| 8,73 | 10,00 | 49,00 | 61,0 | 40,0 | 103 | Non Riv. | HM03051N087 | ||
| 8,90 | 10,00 | 49,00 | 61,0 | 40,0 | 103 | Non Riv. | HM03051N089 | ||
| 9,00 | 10,00 | 49,00 | 61,0 | 40,0 | 103 | Non Riv. | HM03051N090 | ||
| 9,20 | 10,00 | 49,00 | 61,0 | 40,0 | 103 | Non Riv. | HM03051N092 | ||
| 9,30 | 10,00 | 49,00 | 61,0 | 40,0 | 103 | Non Riv. | HM03051N093 | ||
| 9,50 | 10,00 | 49,00 | 61,0 | 40,0 | 103 | Non Riv. | HM03051N095 | ||
| 9,60 | 10,00 | 49,00 | 61,0 | 40,0 | 103 | Non Riv. | HM03051N096 | ||
| 10,00 | 10,00 | 49,00 | 61,0 | 40,0 | 103 | Non Riv. | HM03051N100 | ||
| 10,20 | 12,00 | 56,00 | 71,0 | 45,0 | 118 | Non Riv. | HM03051N102 | ||
| 10,50 | 12,00 | 56,00 | 71,0 | 45,0 | 118 | Non Riv. | HM03051N105 | ||
| 10,80 | 12,00 | 56,00 | 71,0 | 45,0 | 118 | Non Riv. | HM03051N108 | ||
| 11,00 | 12,00 | 56,00 | 71,0 | 45,0 | 118 | Non Riv. | HM03051N110 | ||
| 11,50 | 12,00 | 56,00 | 71,0 | 45,0 | 118 | Non Riv. | HM03051N115 | ||
| 12,00 | 12,00 | 56,00 | 71,0 | 45,0 | 118 | Non Riv. | HM03051N120 | ||
| 12,50 | 14,00 | 60,00 | 77,0 | 45,0 | 124 | Non Riv. | HM03051N125 | ||
| 13,50 | 14,00 | 60,00 | 77,0 | 45,0 | 124 | Non Riv. | HM03051N135 | ||
| 14,00 | 14,00 | 60,00 | 77,0 | 45,0 | 124 | Non Riv. | HM03051N140 |
